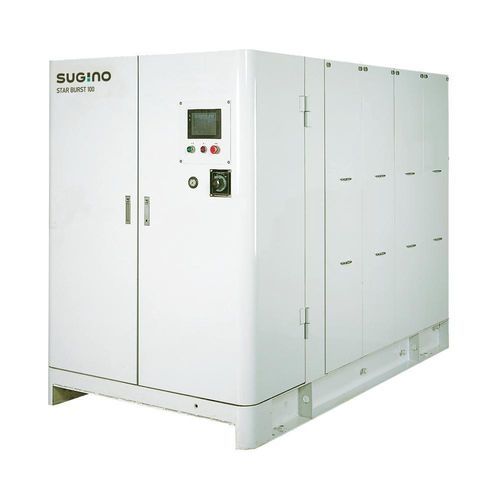

Wet mill STAR BURST 100/70

high-pressurehigh-capacitywet grinding

Product overview
STAR BURST 100/70 is a wet jet milling device for dispersion, emulsification, pulverization and exfoliation by colliding particles pressurized up to 245 MPa in several types of chambers. It is capable of continuous processing with excellent reproducibility in scale-up, making it ideal for large-scale production.

Key functions

• Dispersion
• Emulsification
• Pulverization
• Exfoliation (particle size reduction via high-pressure particle collision)

Performance and use

• Designed for continuous processing suitable for large-scale production
• Multiple chamber types available to adapt to different processing requirements
• High reproducibility for scale-up from R&D/pilot to production

Characteristics / technical specifications

• Maximum operating pressure (particle pressurization): up to 245 MPa
• Model throughput (large-scale model): maximum 1,056 L/h
• Device type: wet jet milling / wet pulverization and dispersion device
• Processing modes: continuous processing with scale-up reproducibility
• Chamber options: several types of chambers to suit application and material
