Mechanical camera adapter TS-MS-01 series

USBmodular

Product Overview

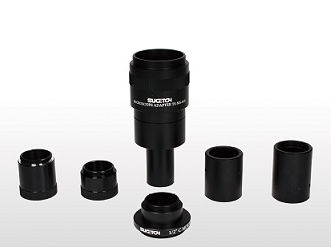

This adapter allows attachment of CCD and digital cameras to a wide range of microscopes. Designed with reliable Japanese optical technology, the TS-MS-01 corrects aberrations to deliver clear, edge-to-edge images.

Key Features

• High-performance optical design: corrects chromatic aberration, field curvature and distortion (lens construction: 5 groups, 8 elements).
• Enables capture of clear, undistorted images across the field.
• Micrometer scale (Ø19 mm, thickness 1 mm) installable (scale not included).
• Broad microscope compatibility: binocular tube Ø23.2 mm (biological/metallurgical), stereoscopic binocular barrel Ø30 mm, and C-mount barrel.
• Supports C-mount cameras for live capture; USB camera capture possible with appropriate camera.
• Fine image sizing adjustment to accommodate different camera models and slight magnification changes.

Product Data
P/N | Description | Bundled Items | Weight (g) | Price (JPY, w/o tax)
TS-MS-01 | Microscope Adapter Basic Set | Microscope adapter; Adapter for 1/2" CCD camera; Conversion adapter for C-mount barrel; Conversion adapter for 30 mm lens barrel; Allen wrench (1.27); Minus driver (2.4); Storage box; Instruction manual | 542.8 | 58,500
TS-MS-01A | Adapter for single-lens reflex digital camera (requires TS-MS-01) | Sold as accessory for TS-MS-01 | 77.2 | 20,000
TS-MS-01B | Varifocal zoom adapter for C-mount camera (requires TS-MS-01) | Requires TS-MS-01 | - | Coming soon
TS-MS-01-SET1 | TS-MS-01 basic set + TS-MS-01A | TS-MS-01 + TS-MS-01A | 620 | 78,500

Specification of Microscope Adapter
Lens Construction | Optical Mag. | F.L. | NA | Flatness | Country of Origin
5G8E | 1.9X | 92.53 mm | 0.025 mm | Planeness: Over 90%* | Japan
*Means it can focus over 90% of the image.

Usage Notes / Additional Info
Examples show SLR and CCD camera installations and sample images. Dedicated camera-mount adapters (including T-mount variants) are available to attach various camera systems; these adapters are designed for use with the TS-MS-01 system and are not standalone products.

Technical characteristics

• Model / Series: TS-MS-01 series (TS-MS-01, TS-MS-01A, TS-MS-01B, TS-MS-01-SET1)
• Lens construction: 5 groups, 8 elements (5G8E)
• Optical magnification: 1.9X
• Focal length (F.L.): 92.53 mm
• NA / aperture spec: 0.025 mm
• Planeness: Over 90%
• Country of origin: Japan
• Bundled items (TS-MS-01): Adapter for 1/2" CCD camera; conversion adapters for C-mount and 30 mm barrel; Allen wrench (1.27); Minus driver (2.4); Storage box; Instruction manual
• Weight (TS-MS-01): 542.8 g
• Price (TS-MS-01, excl. tax): 58,500 JPY
