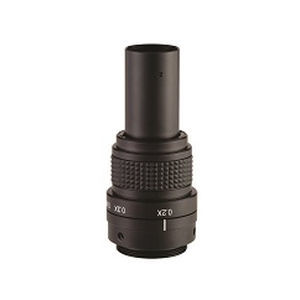

Macro camera objective TS-93001VS

zoomminiaturecompact design

Product Overview

• 3x Zoom Ratio; Optical magnification 0.133x to 0.4x
• Working distance (WD): 200 mm (from edge of the lens to object: 195.2mm ±5%)
• Mount: C-Mount
• Supporting sensor formats: 1/2" , 1/3" , 1/4"
• Compact: length 67.5 mm; small size, light weight, high versatility
• Front Converter (option) available to increase magnification (WD becomes shorter)
• Compatible peripherals: Cameras, Illuminations, Auxiliary lenses, Stands

Lens specification
P/N: TS-93001VS
Magnification range: 0.133x - 0.4x
Zoom ratio: 3.0x
WD: 200mm (from edge of the Lens to object : 195.2mm +/-5%)
Mount: C-Mount
Supporting Sensor Format: 1/2", 1/3", 1/4"
Optical magnification: 0.133x (min) - 0.4x (max)
Depth of field (mm): 16.9 (at 0.133x) / 1.9 (at 0.4x)
Resolution at object side (TVL/mm): 8 TVL (at 0.133x) / 28 TVL (at 0.4x)
Weight: 55 g (approx.)
External dimension: Dia.32 x 67.5 +/-0.5 mm
Price: Yen 80,000 (w/o tax) / Yen 88,000 (w/ tax)

Magnification (examples for monitor/display use)
Calculation note: Monitor magnification = monitor size (inch) × 25.4

Optical magnification 0.133× — 1/2" CCD/CMOS: Monitor Magnification 10.1×; Field of view 36.09 mm × 48.12 mm
Optical magnification 0.133× — 1/3" CCD/CMOS: Monitor Magnification 13.5×; Field of view 27.07 mm × 36.09 mm
Optical magnification 0.133× — 1/4" CCD/CMOS: Monitor Magnification 18.00×; Field of view 20.30 mm × 27.07 mm

Optical magnification 0.2× — 1/2" CCD/CMOS: Monitor Magnification 15.2×; Field of view 24.00 mm × 32.00 mm
Optical magnification 0.2× — 1/3" CCD/CMOS: Monitor Magnification 20.3×; Field of view 18.00 mm × 24.00 mm
Optical magnification 0.2× — 1/4" CCD/CMOS: Monitor Magnification 16.93×; Field of view 13.67 mm × 18.22 mm

Optical magnification 0.3× — 1/2" CCD/CMOS: Monitor Magnification 22.9×; Field of view 16.00 mm × 21.33 mm
Optical magnification 0.3× — 1/3" CCD/CMOS: Monitor Magnification 30.5×; Field of view 12.00 mm × 16.00 mm
Optical magnification 0.3× — 1/4" CCD/CMOS: Monitor Magnification 25.4×; Field of view 9.11 mm × 12.15 mm

Optical magnification 0.4× — 1/2" CCD/CMOS: Monitor Magnification 30.5×; Field of view 12.00 mm × 16.00 mm
Optical magnification 0.4× — 1/3" CCD/CMOS: Monitor Magnification 40.6×; Field of view 9.00 mm × 12.00 mm
Optical magnification 0.4× — 1/4" CCD/CMOS: Monitor Magnification 33.87×; Field of view 6.83 mm × 9.11 mm

Front converter (option)
P/N: TS-FC1-2X — Magnification 2x; WD 95 mm; Zoom ratio 0.26 to 0.8x; Size Dia.19 x 7.5 mm; Mount M25.4 P1/32 inch; Price: Yen 10,000 (w/o tax) / Yen 11,000 (w/ tax)
P/N: TS-FC1-3X — Magnification 3x; WD 55 mm; Zoom ratio 0.40 to 1.2x; Size Dia.19 x 15.0 mm; Mount M25.4 P1/32 inch; Price: Yen 10,000 (w/o tax) / Yen 11,000 (w/ tax)
P/N: TS-FC1-4X — Magnification 4x; WD 35 mm; Zoom ratio 0.64 to 1.61x; Size Dia.19 x 15.0 mm; Mount M25.4 P1/32 inch; Price: Yen 10,000 (w/o tax) / Yen 11,000 (w/ tax)
P/N: TS-FC1-6X — Magnification 6x; WD 23 mm; Zoom ratio 0.81 to 2.43x; Size Dia.19 x 15.0 mm; Mount M25.4 P1/32 inch; Price: Yen 12,000 (w/o tax) / Yen 13,200 (w/ tax)

Extender Lens (option)
P/N TS-EX-15: 1.5x Extender — Price: Yen 11,000 (w/o tax) / Yen 12,100 (w/ tax)
P/N TS-EX-20: 2.0x Extender — Price: Yen 12,000 (w/o tax) / Yen 13,200 (w/ tax)
P/N TS-EX-30: 3.0x Extender — Price: Yen 20,000 (w/o tax) / Yen 22,000 (w/ tax) [note: price revision notice on page]
P/N TS-EX-50: 5.0x Extender — Price: Yen 27,000 (w/o tax) / Yen 29,700 (w/ tax)

Protect Filter (Optional)
Product No.: TS-PF-01 — M18 P0.5 Protect Filter — Multi-layer AR coating both surfaces — Mount M18 P0.5 — Price: Yen 9,800 (w/o tax) / Yen 10,780 (w/ tax)

In-Line illumination barrel (Optional)
Product No.: TS-93001-CII — In-Line illumination barrel for TS-93001VS — Reflects illumination (fiber, LED, tungsten etc.) via half mirror and irradiates through object lens; can be used as simplified in-line illumination barrel for TS-93001VS

Notes
The above magnifications use a 24-inch monitor as reference. Magnification increases with larger monitor size. Smaller imager size yields higher magnification.
