LED micrometer TS-HM series

Verniermanualprecision

Product Overview

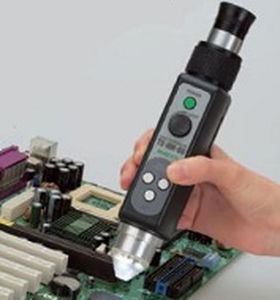

The TS-HM handy micrometer with integrated LED illumination is a compact measuring microscope designed for precision visual inspection and direct measurement of small parts. It is suitable for PCB inspection, electronic components, machined metal parts and printed characters, offering portable, cable-free operation for field and bench use.

Key Features

• All-in-one design: Integrated LED illumination and internal battery system for cable-free operation.
• Upright image: Roof-prism optics provide an upright, unreversed image for natural observation and easier alignment.
• Multi-function LED lighting: Nine high-brightness white LEDs arranged in three groups, selectable lighting sequences and adjustable brightness to improve contrast and depth perception.
• Integrated measurement scale: Precision scale in the eyepiece allows direct visual measurement; scale resolution varies by magnification.
• Camera compatibility: Optional TS-HM-USB adapter for C-mount/CS-mount camera attachment; compatible with USB, NTSC, GigE and CameraLink formats. Smartphone adapters supported for mobile capture.
• Battery powered: Uses four AAA batteries for illumination, enabling portable inspections.

Applications

• PCB and electronic circuit inspection
• Solder joint and micro-component verification
• Inspection of printed characters and labels
• Surface finish and machined part inspection
• On-site quality control and service diagnostics

Model Variants and Specifications

• TS-HM-25 — Magnification: 25x | E.F.V.: 7.2 mm | Minimum scale: 0.05 mm | Measurement range: 5.0 mm
• TS-HM-60 — Magnification: 60x | E.F.V.: 3.0 mm | Minimum scale: 0.02 mm | Measurement range: 2.0 mm
• TS-HM-120 — Magnification: 120x | E.F.V.: 1.8 mm | Minimum scale: 0.01 mm | Measurement range: 1.0 mm

Additional Notes
The eyepiece includes a built-in precision scale allowing immediate measurement without external attachments. Optional accessories: C/CS mount camera adapter (TS-HM-USB series) and compatible stands/mounts such as TS-P22Z for fixed installations.

Technical specifications

• Brand: SUGITOH CO., LTD.
• Product family / series: TS-HM series
• Magnification options: 25x, 60x, 120x
• Effective Field of View (E.F.V.): 7.2 mm (25x), 3.0 mm (60x), 1.8 mm (120x)
• Minimum scale (resolution): 0.05 mm (25x), 0.02 mm (60x), 0.01 mm (120x)
• Measurement range: 5.0 mm (25x), 2.0 mm (60x), 1.0 mm (120x)
• Illumination: 9 high-brightness white LEDs, three-step lighting sequence, adjustable brightness
• Power: Built-in battery system, powered by four AAA batteries
• Optics: Roof prism for upright, unreversed viewing
• Camera compatibility: C/CS mount cameras; recommended imager size 2/3" or larger; optional TS-HM-USB adapter available
• Typical applications: PCB inspection, solder/joint checking, character/label verification, surface finish inspection, on-site QC
