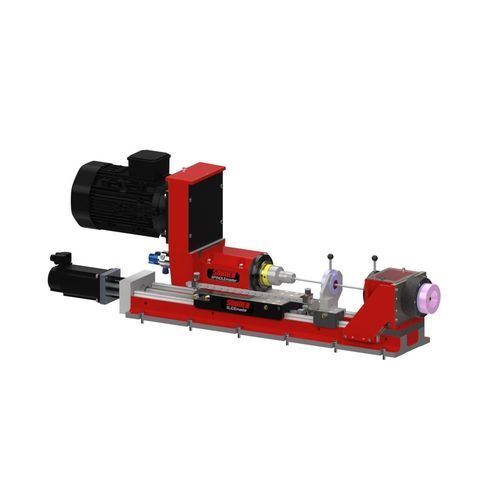

Gun drilling unit ECPP 40-200electrichorizontal
Add to favorites
Compare this product
Characteristics
- Drive type
- electric
- Other characteristics
- horizontal, deep hole
- Rotational speed
Max.: 9,000 rpm
(56,548.7 rad.min-1)Min.: 400 rpm
(2,513.3 rad.min-1)- Stroke
200 mm
(7.87 in)
Description
Maximum drilling capacity (HSS/St-60) Ø 3 - Ø 6 mm
Maximum drilling depth < 200 mm
Feed controlled by servo motor
Feed force 5500 N
Rated power of spindle motor at 50Hz 4 kW
Spindle nose HSK63
Lead of ball screw 5mm / Ø25mm
Ball screw precision 23 µm/300mm
Spindle with central coolant supply
Color RAL 5012
