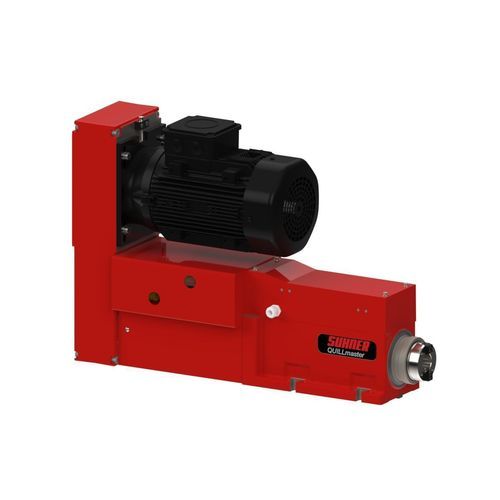

1-axis machining unit BEM 20with pneumatic feedwith hydraulic feed
Add to favorites
Compare this product
Characteristics
- Number of axes
- 1-axis
- Specifications
- with pneumatic feed, with hydraulic feed
Description
DESCRIPTION
Our BEM 20-125, with pneumatic feed and integrated hydraulic regulation, has been specifically designed for precise drilling work and is ideal for industrial applications requiring high precision and efficiency.
TECHNICAL DATA
Total stroke 125 mm
Working stroke 125 mm
Max. Drilling capacity (HSS/St-60) 20 mm
Feed force 4130 N
Speed range at 50Hz 360 - 5800 min-1
Operating pressure 5 - 7 bar
Max. Permissible speed 8000 min-1
Motor power at 50Hz 1.5 / 2.2 / 3.0 kW
Tool holder ISO30 / HSK50
Transmittable torque 80 Nm
Weight / color 73 kg / RAL 5012
Concentricity 0.01
Poly-V belt drive J15
Normal voltage at 50Hz 230 / 460 V
Our BEM 20-125, with pneumatic feed and integrated hydraulic regulation, has been specifically designed for precise drilling work and is ideal for industrial applications requiring high precision and efficiency.
TECHNICAL DATA
Total stroke 125 mm
Working stroke 125 mm
Max. Drilling capacity (HSS/St-60) 20 mm
Feed force 4130 N
Speed range at 50Hz 360 - 5800 min-1
Operating pressure 5 - 7 bar
Max. Permissible speed 8000 min-1
Motor power at 50Hz 1.5 / 2.2 / 3.0 kW
Tool holder ISO30 / HSK50
Transmittable torque 80 Nm
Weight / color 73 kg / RAL 5012
Concentricity 0.01
Poly-V belt drive J15
Normal voltage at 50Hz 230 / 460 V
