Centrifugal compressor T seriesairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-free
- Application domain
- industrial, for food applications, for chemical applications, for the petrochemical industry
- Applications
- construction, for the gas industry, for underground mining
- Other characteristics
- heavy-duty
- Pressure
Max.: 230 psi
Min.: 20 psi
- Flow
Max.: 11,750 ft³/min
(332.72 m³/min)Min.: 550 ft³/min
(15.57 m³/min)- Power
Max.: 1,715 kW
(2,331.75 hp)Min.: 125 kW
(169.95 hp)- Length
Max.: 5,700 mm
(224 in)Min.: 2,200 mm
(87 in)- Width
Max.: 2,500 mm
(98 in)Min.: 1,300 mm
(51 in)- Height
Max.: 3,000 mm
(118 in)Min.: 1,400 mm
(55 in)- Weight
Max.: 18,500 kg
(40,785.5 lb)Min.: 4,500 kg
(9,920.8 lb)
Description

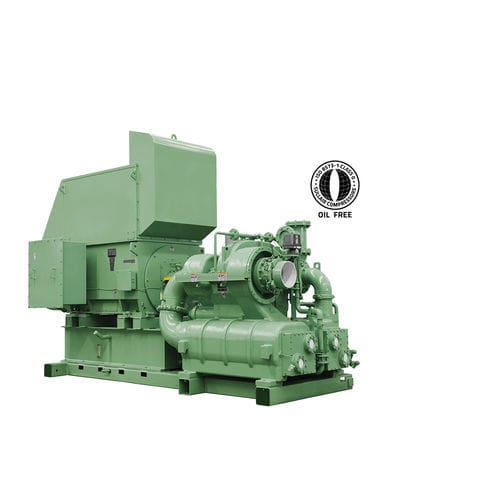

Sullair Centrifugal T-Series compressors rely on a simple design—which not only reduces the potential for mechanical loss, but also simplifies maintenance and operation.
A robust, time-proven design helps Sullair Centrifugal compressors achieve unparalleled reliability and durability while providing Class 0 oil free air.
Energy Efficiency
Low Maintenance
Ease of Operation
Ease of Use
Advanced PLC Control System
Non-Contacting Internal Components
Anti-Reverse Rotation Main Shaft Oil Pump
Energy Efficiency
Inlet Guide Vane/IGV
High-Powered Impellers
Diffusers
Stability and Vibration Reduction
Single Piece Gear Box with Integrated Coolers
Tilting Pad Journal Bearings
Thrust Collars
Low Maintenance and Maximum Reliability
Power Coupling
Easily Accessible Coolers
Aerodynamic Inlets
Labyrinth Shaft Seals
Bull Gear Bearings
