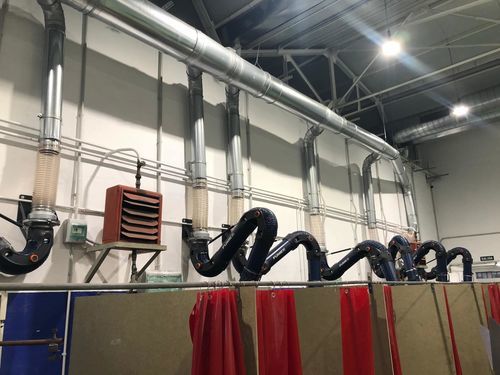

Fixed extraction arm

articulateddustsmoke

Description
Articulated extraction arms are local exhaust solutions for fixed welding workstations. They capture visible and invisible particles (smoke, dust, fumes), provide easy manual positioning and are designed for sustained industrial use with robust construction.

Applications and benefits

• Specifically designed for extraction of welding smoke and particles generated during welding processes.
• Applicable across sectors: electronics, metal fabrication, aerospace, marine and other industrial processes producing fumes and dust.
• Foldable and articulated design; 360° rotation with simple manual movement for fast and accurate positioning.
• Hood adjustment horizontal/vertical via polyurethane handle for ergonomic manipulation.
• Multiple connection options and several maximum reach lengths available to suit installation needs.
• Suitable for environments with smoke, dust and vapours; helps reduce inhalation-related health risks (e.g. asthma, long-term exposure to carcinogens).
• Robust construction for long service life and comfortable handling.

Installation and certifications

• Installed as part of industrial air extraction and filtration systems.
• Available in galvanised steel and in AISI 304 stainless steel.
• ATEX-certified models (CE Ex II 2 G/D) are available with anti-static duct joints.

Features / technical specifications

• Main function: localized extraction of fumes, dust and vapours at fixed workpoints.
• Movement: articulated, foldable with manual 360° rotation.
• Handle: polyurethane handle for horizontal/vertical hood adjustment.
• Materials: galvanised steel; optional AISI 304 stainless steel.
• ATEX versions: CE Ex II 2 G/D available (articulations with anti-static duct).
• Connections: multiple connection options adaptable to existing extraction systems.
• Reach: multiple maximum reach lengths depending on model (consult model specifications).
• Capture capability: suitable for visible and invisible particles generated by welding.
• Integration: designed for integration into industrial filtration and extraction installations.
• Durability: robust construction for continuous industrial use.
