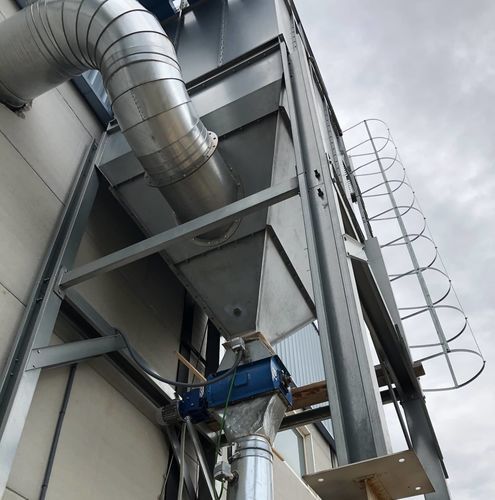

Pneumatic conveying rotary valve

powderfor dry bulk materialsround-flange

Description
The rotary valve is used as a pre-separator and dosing element. It features a 6-blade rubber rotor bolted to the rotor shaft plate profiles and rotates inside a cylindrical housing, allowing the product to pass while maintaining the conditions of the equipment located above and below the valve.

Features

• Suitable for potentially explosive atmospheres; designed in accordance with ATEX 2014/34/EU for category 2D and 2G (dust and gas).
• Lightweight design.
• Square or round inlet and outlet flanges.
• Intended for dosing and/or pneumatic conveying of powder or granular products.
• External bearings.
• Wear protection.
• Installation orientation and position configurable to customer requirements.
• Rotors available with different pocket shapes and rotational speeds depending on the application and handled product; multiple sizes available.

Technical specifications

• Element: rotary valve serving as pre-separator and dosing unit.
• Rotor: 6 bolted rubber blades on the shaft.
• Housing: cylindrical, permits product flow while preserving adjacent equipment conditions.
• Certification: designed to ATEX 2014/34/EU, suitable for category 2D and 2G (dust and gas).
• Connections: inlet and outlet flanges in square or round formats.
• Applications: dosing and pneumatic conveying of powders and granules.
• Mechanics: external bearings and wear protection.
• Options: configurable placement and rotor configuration (pocket type and speed) according to product and application; available in several sizes.
