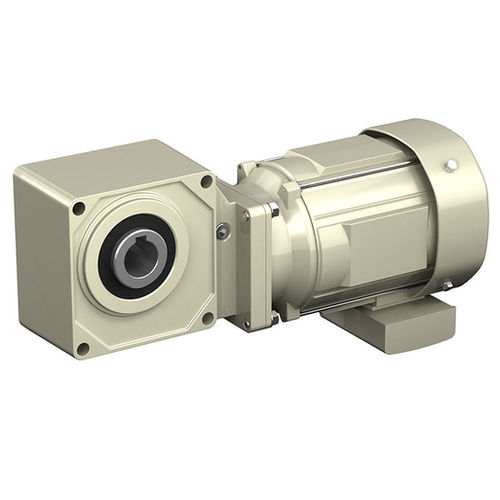

Hypoid gear reducer Hyponic
bevelcylindricalcoaxial

hypoid gear reducer
hypoid gear reducer
hypoid gear reducer
hypoid gear reducer
hypoid gear reducer
hypoid gear reducer
hypoid gear reducer
Add to favorites
Compare this product


Characteristics

Type
hypoid, bevel, cylindrical
Shaft orientation
coaxial, right angle
Torque
200 - 500 Nm, 1 - 2 kNm, 500 - 1000 Nm
Performance
precision, maintenance-free
Applications
shaft, conveyor
Other characteristics
compact, modular, flange, universal, washdown, IP65, motor
Power

Min.: 15 W (0.02 hp)

Max.: 5,500 W (7.48 hp)

Description

HYPONIC® Gearmotor Right angle shaft gearmotor, with a motor range of 1/8 to 15 HP Maintenance-free grease lubrication eliminates oil changes A wide range of choices ( 1/8 to 15 HP ) to accommodate all types of uses. Modular design allows for multiple gearheads and motor combinations for increased service factor. A variety of industry packages and options are available, including grease lubrication, antibacterial coating, waterproofing, and low-temperature requirements. Technical Info Output Shaft - Hollow shaft, Solid shaft Output Shaft Direction(s) - Any Mounting Direction Mounting Style - Shaft mount, Foot mount, Flange mount Frame Size - 12 sizes Reduction Ratio - 5:1 - 1440:1 Capacity - 1/8 to 15 HP Motor Types - Three phase, premium efficiency, high efficiency, for inverters, single phase, outdoors, waterproof, increased safety, compliant with overseas standards

Catalogs

Neo Hyponic
Neo Hyponic
120 Pages
Astero series
Astero series
186 Pages
