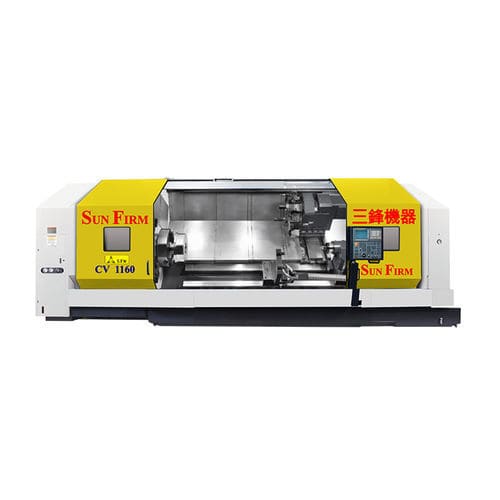

CNC lathe CV series

horizontal2-axisslant bed

Swing Over Cross Slide : 750 mm Distance Between Centers : 1,800~5,000 mm Capacity Distance between center - 1800 mm / 3400 mm / 4800 mm Headstock Spindle bore - 153 mm / *205 mm ~ *535 mm Spindle nose - A2-15 / *A2-20 ~ *A2-28 Spindle speed range - 1~1200 RPM No. of spindle speed - 4 Carriage X-axis servo motor - 4 kW (5.4 HP) Z-axis servo motor - 7 kW (9.4 HP) X-axis ball screw dia. - Ø50 mm x P8 mm Z-axis ball screw dia. - Ø63 mm x P10 mm Cutting feed rateX / Z: 0.001~500 mm/rev Turret I.D. tool shank size - Ø63 mm O.D tool shank size - □32x32 mm Live tooling drive motor - N/A - AC 7.5 kW (10 HP) / AC 11 kW (15 HP) Tailstock Quill dia. - Ø160 mm Quill travel - 150 mm Taper of center - MT No.6 Tailstock base travel - 1600 mm / 3200 mm / 4600 mm Motor Coolant pump - 1 kW (1.5 HP) Hydraulic pump - 2.3 kW (3 HP) Standard Accessories FANUC 0iTF Controller Color LCD 10.4" MPG Hand Wheel Spindle Bore 153 mm Head Stock Coolant System Air Conditioner Hydraulic System Auto Lubrication System Rotary Quill Tailstock Center Center Sleeve Live Center Full Safety Guard ID/OD Tool Holder Work Light Tool Box with Adjusting Tool Leveling Screws & Foundation Pads Chip Conveyor Operation & Maintenance Manual Optional Accessories Spindle Bore (205 mm, 310 mm) Double Chuck Attachment Steady Rest Hydraulic Steady Rest 3-Jaw Hydraulic Chuck 3-Jaw Air Chuck 4-Jaw Independent Chuck 4-Jaw Face Chuck Oil Mist Collector CE Standard
