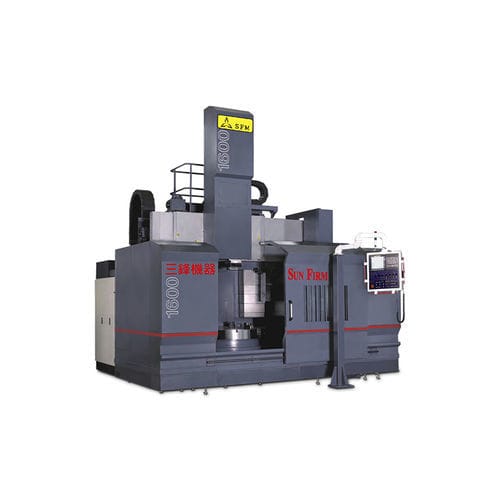

CNC lathe VT seriesverticalslant bed24 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Structure
- slant bed
- Number of tool stations
- 12 tools, 24 tools
- Applications
- heavy-duty
- Diameter
Min.: 1,700 mm
(66.93 in)Max.: 4,500 mm
(177.17 in)- Spindle speed
Min.: 10 rpm
(62.832 rad.min-1)Max.: 3,000 rpm
(18,849.556 rad.min-1)- Maximum cutting diameter
1,250 mm, 1,600 mm, 2,000 mm
(49 in, 63 in, 79 in)- Axe X
Min.: 100 mm
(4 in)Max.: 3,200 mm
(126 in)- Axe Z
800 mm, 1,250 mm, 1,350 mm, 1,600 mm
(31 in, 49 in, 53 in, 63 in)- Rapids on X
10 m/min, 12 m/min
- Rapids on Z
10 m/min, 12 m/min
- Nominal power
15 kW, 18.5 kW, 22 kW, 26 kW
(20.4 hp, 25.2 hp, 29.9 hp, 35.4 hp)
Description
Table Turning Height : 1,000~2,500 mm
Table Max. Load : 10,000~40,000 kg
Standard Accessories
Fanuc 0i-TF Controller System
Level Screws and Level Shoes
Worklamps
Enclosure Guards
Chip Conveyor with Cart
3 Colors Indicator Lamp
Hydraulic System
Air Conditioner
Automatic Lubrication System
Operation & Maintenance Manual
6 Bar of Coolant Water Device
Drum Type ATC-12T
4-Jaw Independent Chuck
Electrical Circuit Diagram
Air Gun
Optional Accessories
Siemens 828D Control System
Part Probe Device
Extra I.D. & O.D. Tool Holder
Oil Water Separator
Milling Spindle ZF Gearbox
10 bar/20 bar/70 bar of CTS Device
Heightening Type Column
Automatic Tool Change for Cutting, Milling, and Grinding
X/Z Axes Linear Scales
Automatic Front Door
Tool Probe Device
Water Gun
CAT50/DIN50 Milling Tool
