Solar panel cleaning system brushfor photovoltaic applicationsmobile
Add to favorites
Compare this product
Characteristics
- Technology
- brush
- Applications
- for photovoltaic applications, for solar panels
- Other characteristics
- mobile, wet processing
Description
Overview
SunBrush mobil Eagle is a mobile solar panel cleaning machine engineered for densely arranged PV parks and narrow aisles. It combines the WashTronic automatic brush leveling system with the TrackFlex adjustable boom to compensate module tilt and uneven ground. The fully extendable arm provides two cleaning paths to reach upper surfaces and the module lower edge.
Application
Designed for tightly built solar parks and narrow rows. With a crawler chassis the Eagle cleans otherwise inaccessible PV tables up to 4 m wide. The two-step cleaning approach allows first reaching the top surface, then angling to clean the lower edge — suitable for narrow-aisle maintenance and tight layouts.
Carrier vehicles
Features
Images & illustrations

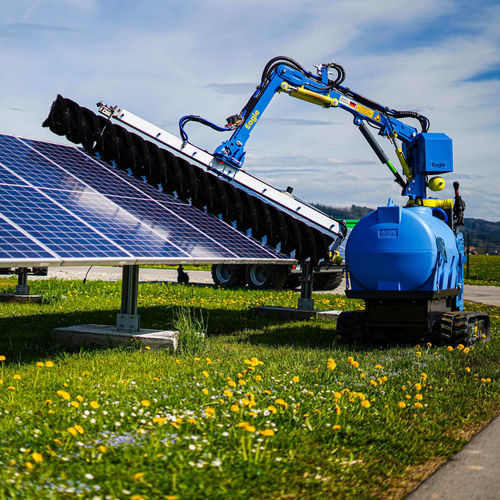

Product images show the Eagle fitted on different carrier vehicles, cleaning paths and close access beneath modules for planning and installation reference.
Technical specifications
SunBrush mobil Eagle is a mobile solar panel cleaning machine engineered for densely arranged PV parks and narrow aisles. It combines the WashTronic automatic brush leveling system with the TrackFlex adjustable boom to compensate module tilt and uneven ground. The fully extendable arm provides two cleaning paths to reach upper surfaces and the module lower edge.
Application
Designed for tightly built solar parks and narrow rows. With a crawler chassis the Eagle cleans otherwise inaccessible PV tables up to 4 m wide. The two-step cleaning approach allows first reaching the top surface, then angling to clean the lower edge — suitable for narrow-aisle maintenance and tight layouts.
Carrier vehicles
- Weidemann
- Carraro
- AVANT
- Crawler chassis (for wide tables)
Features
- WashTronic System: automatic leveling between brush and module on uneven terrain
- Transport position: hydraulically foldable cleaning arm for safe transport
- 280° cleaning reach: hydraulically swivelling motor for both sides of the carrier vehicle
- Can-Bus joystick control: intuitive operation from the vehicle cabin
- Wet cleaning: standard water lines with joystick-controlled soaking and flushing
- TrackFlex effect: adjustable boom angle for close access under modules
- Two cleaning paths: enables cleaning of upper surface and lower module edge
Images & illustrations
Product images show the Eagle fitted on different carrier vehicles, cleaning paths and close access beneath modules for planning and installation reference.
Technical specifications
- Model: Eagle (SunBrush mobil)
- Designed for narrow-aisle and densely built PV parks
- Suitable for module tables up to 4 m wide (with crawler chassis)
- Fully extendable and inclinable arm with two cleaning paths
- Hydraulically swivelling motor — approx. 280° cleaning reach
- WashTronic: automatic brush-to-module leveling
- TrackFlex: adjustable boom angle
- Can-Bus joystick control from vehicle cabin
- Standard water lines for wet cleaning; soaking and flushing joystick-controlled
- Compatible with various carrier vehicles (ex.: Weidemann, Carraro, AVANT, crawler chassis)
