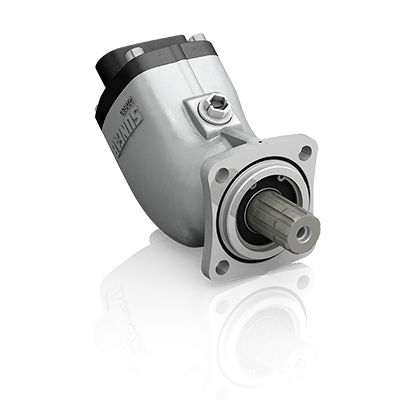

Axial piston hydraulic motor SAM 010-130 DIN seriesfixed-displacementcompactbent-axis
Add to favorites
Compare this product
Characteristics
- Technology
- axial piston
- Other characteristics
- fixed-displacement, compact, bent-axis
- Pressure
280 bar, 330 bar, 350 bar, 400 bar
(4,061 psi, 4,786 psi, 5,076 psi, 5,802 psi)- Rotational speed
Max.: 3,000 rpm
(18,849.56 rad.min-1)Min.: 300 rpm
(1,884.96 rad.min-1)- Torque
Max.: 2.06 Nm
(1.52 ft.lb)Min.: 0.15 Nm
(0.11 ft.lb)- Displacement
Max.: 130 cm³
(4.4 US fl oz)Min.: 10 cm³
(0.34 US fl oz)
Description
SAM 010-130 DIN is a series of light weight casing axial piston motors, particularly suitable for mobile hydraulics.
SAM 010-130 DIN is of the bent-axis type with spherical pistons. The design gives a compact motor with few moving parts, high starting torque and high operational reliability. It covers the entire displacement range 10-130 cmᶟ/rev. with max. pressure 400 bar. It´s high level of reliability is due to the choice of materials, hardening methods, surface structures and the quality assured manufacturing process.
PRODUCT BENEFITS
• Corrosion free light metal-housing
• Smooth operation over the entire speed range
• High efficiency
• Suitable for applications with high angular accelerations due to its high rotary stiffness
• Light weight
• Less heat generation due to better ability to dissipate heat through housing
