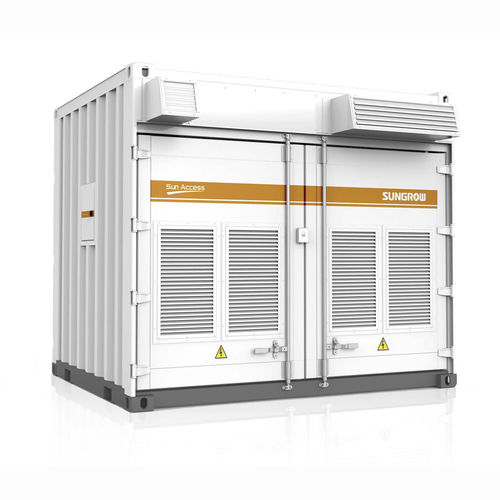

Power DC/AC inverter SG1000, SG1250
ruggedfor solar applicationsmodular

power DC/AC inverter
power DC/AC inverter
Add to favorites
Compare this product


Characteristics

Electrical characteristics
power
Applications
rugged, for solar applications
Other characteristics
modular, air-cooled
Power

1,000,000 W, 1,260,000 W

Output power kVA

1,100 kVA, 1,386 kVA
(1,495.5833 hp, 1,884.4349 hp)

Voltage

Min.: 252 V

Max.: 414 V

315 V, 360 V

Primary current

2,016 A, 2,222 A

Description

Cost Effiective • No need for inverter house on site • Integrated ventilation duct and auxiliary power supply • 8 m² area easy for deployment and fast installation • 10-foot standard shipping container Easy Maintenance • Integrated current monitoring function for fast trouble shooting • Modular design easy for maintenance Flexible • Complete grid support: LVRT, HVRT, ZVRT • IP54 protection degree suitable for harsh environment condition Secured Yield • Efficient three-level topology, maximum system efficiency up to 99% • 1/2 MPPT, wide MPP voltage range. • No derating up to 50℃
