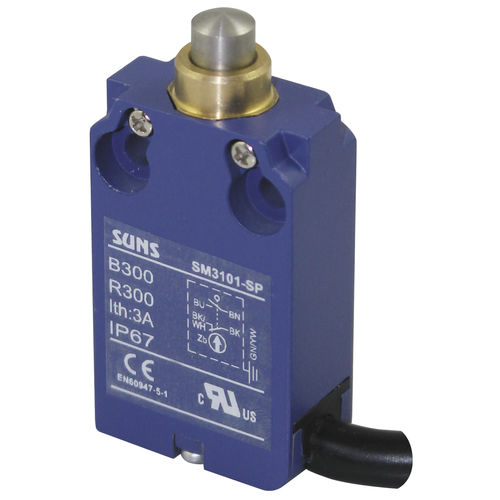

Small limit switch SM3111/SM3121/SM3131

IP67safetywith plunger

SM31 Compact Safety Limit Switches Features: · Sub-body style · Modular · IP67 Waterproof model Model: SM31P11-01 : Snap Action SM31S11-01 : Slow Action Specifications: Operating Speed: 0.05mm-2m/sec Operating Frequency:Mechanical:120ops/min Electrical: 30ops/min Insulation Resistance:　>100MΩ @ 500V DC Contact Resistance:　　<25mΩ Rated Current/Voltage:　10A(EN60947-5-1) Electrical Rating: AC15 A600/ DC13 Q300 Dielectric Strength:　1000VAC for 1 min between non-continuous terminals 2500VAC for 1 min between each terminal and ground Service Life:Mechanically 10,000,000, Electrically 500,000 Operating Temperature: -25~80℃(-13~176°F) without formation of ice Humidity:　　　　 <95%RH Cable：　 5 core:0.75mm² 　　7 core: 0.5mm² 9 core: 0.34mm² Degree of protection:　 IP67
