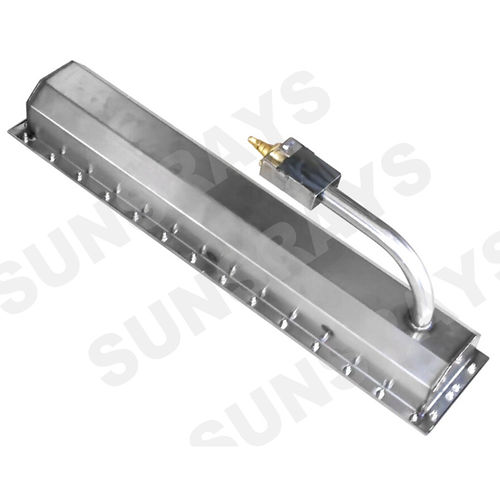

Radiant burner K850B

natural gasindirectly firedfor surface treatment

SUNSRAYS® infrared gas burners are specifically designed for use in applications that do not have the facility for electrical resistance heating, yet require efficient and maximized heat supply with low emissions. The top grade stainless steel used in the structuring of the gas burner provides a high level of durability and solidity, along with rendering the burner light in weight. The gas burner is available with rated output levels of 7000 to 10000 kcal. It is compatible with combustion by propane and natural gas. The burner is available with add on features such as flame regulation and ultra-quick shut-down which kicks into operation in the event of the burner extinguishing accidentally. The burner consumes gas in the range of 0.5 kg to 0.9 kg with gas supply pressures of 0.4 to 1.5 bar. The K850a version of the burner is sized 850 x 148 mm and weighs 3.3kg while the K850b model is sized 760 x 148 mm and weighs 3.5kg. The burners work at a power supply of 6.6kw to 12.8kw.
