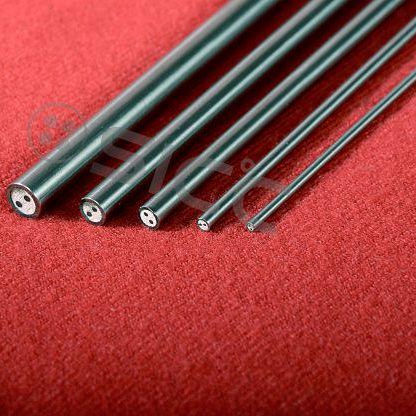

Mineral-insulated heating cable 1/2/4/6 core

resistive

The mineral insulated heating cable are combined with heating conductors ,Mgo powder insulated and sheath material as a compact entirety. It has excellent mechanical strength and corrosion resistance. SICC is one of the world's leading supplier of mineral insulated cable with 10 production lines and 4 million meters annual, we can supply mineral insulated heating cable with Stainless steel, Copper, Inconel sheath. 1. Mineral insulated stainless steel cable can meet the requirements of high temperature conditions and large heating power(up to 269W/m).The maximum withstanding temperature can reach at 600C, the range of conductor resistance is 28000-19.2Ω/km. 2. Mineral insulated copper cable can meet the requirements of high temperature conditions and heat tracing for long distance pipelines, The maximum withstanding temperature can reach at 250C,the range of conductor resistance is 480-0.5Ω/km. 3. Mineral insulated Inconel cable can meet the requirements of high temperature conditions and heat tracing for long distance pipelines, The maximum withstanding temperature can reach at 400C,the range of conductor resistance is28000-19.2Ω/km. SPECIFICATIONS DETAILS SICC is one of the world's leading supplier of mineral insulated cable with 10 production lines and 4 million meters annual, we can supply mineral insulated heating cable with Stainless steel, Copper, Inconel sheath. We can supply all types of mi heating cables. If you have a special application, pls contact our sales department to find out the solution, we will be waiting here at 7*24.
