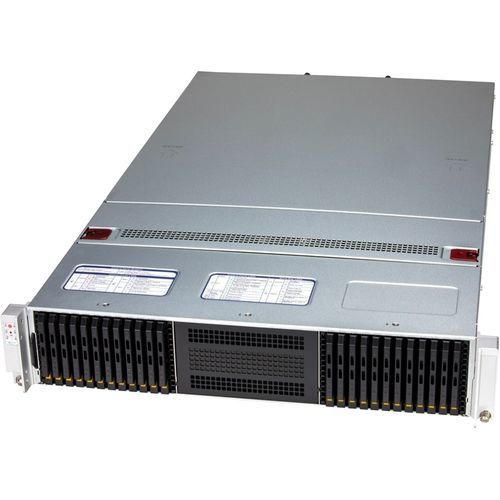

RAID server SSG-222B-NE3X24R

videonetworkGPU

Software-defined Storage, In-Memory Computing, Scale Out All-Flash NVMe Storage, Data Intensive HPC, Private & Hybrid Cloud, NVMe Over Fabrics Solution, AI/Deep Learning Training and Inference, Key Features Flexible networking with up to 2 OCP 3.0 compatible AIOM slots; Up to 2 PCIe 5.0 x16 FHHL + 1 PCIe 5.0 x8 FHHL + 2 PCIe 5.0 x16 AIOM slots; Up to 32 front hot-swap E3.S 1T NVMe drive bays Up to 8 CXL 2.0 x8 Type 3 devices; Up to 2 double-width GPUs (Max TDP 300W); Form Factor Enclosure: 438 x 88 x 780mm (17.25" x 3.47" x 30.7") Package: 597 x 239 x 1097mm (23.5" x 9.4" x 43.2") Processor Dual Socket E2 (LGA-4710) Up to 144C/144T; Up to 108MB Cache per CPU GPU Max GPU Count: Up to 2 double-width GPUs CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: PCIe Drive Bays Configuration Default: Total 24 bays 24 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays Option A: Total 32 bays 32 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays Option B: Total 24 bays 16 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays 8 front fixed E3.S 2T PCIe 5.0 x8 CXL Type 3 drive bays Option C: Total 16 bays 8 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays 8 front fixed E3.S 2T PCIe 5.0 x8 CXL Type 3 drive bays M.2: 2 M.2 NVMe slots (M-key 2280/22110) Expansion Slots PCI-Express (PCIe) Configuration: Default 2 PCIe 5.0 x16 FHFL double-width slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) 1 PCIe 5.0 x8 FHFL double-width slot Option A 1 PCIe 5.0 x8 FHFL double-width slot 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) Option B 1 PCIe 5.0 x8 FHFL double-width slot 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
