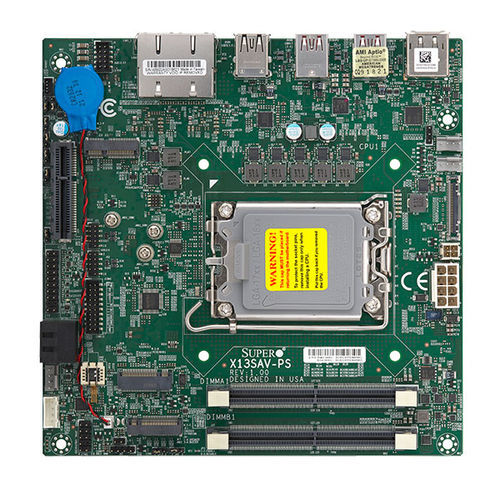

Mini-ITX motherboard X13SAV-PS

Intel® Core i3Intel® Core i5Intel® Core i7

Physical Stats Dimension - 6.7" x 6.7" (17.02cm x 17.02cm) Processor Single Socket V0 supported Core - Up to 14 cores System Memory Memory Type - DIMM Sizes - 8GB, 16GB, 32GB Memory Voltage - 1.1V On-Board Devices Chipset - System on Chip Input / Output Expansion Slots System BIOS BIOS Type - AMI UEFI BIOS Features - ACPI 6.1 SMBIOS 3.0 or later PCI FW 3.0 UEFI 2.7 RTC (Real Time Clock) Wakeup Management System Management Software - Wake-on-LAN, Watchdog Power Configurations - Power-on mode for AC power recovery, ACPI Power Management, ATX Power connector, CPU thermal trip support for processor protection, +12V DC Power Input PC Health Monitoring Voltage - VBAT, System temperature, PCH temperature, CPU temperature, Chipset Voltage, 3 -fan status, +5V, +3.3V, +12V, Monitors CPU Core Voltages FAN - 3x 4-pin fan headers (up to 3 fans) PWM fan speed control Thermal Control for 3 Fan Connectors Other Features - WOL ATX Power connector ACPI power management 8-pin 12v DC power connector 12V DC or ATX Power Source Operating Environment Operating Temperature Range - 0°C - 60°C (32°F - 140°F) Non-Operating Temperature Range - -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range - 10% - 85% (non-condensing) Non Operating Relative Humidity Range - 10% - 95% (non-condensing)
