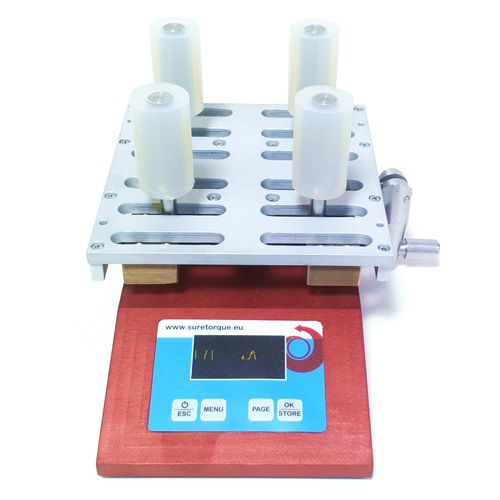

Bench-top torque tester ST-C3

for bottle closuresdigitalmanual

The ST-C3 torque meter is a precisions electronic instrument. The unit offers the most advanced manual torque testing solution on the market. The graphical OLED display allows the monitoring of the release and application processes on torque-time diagram. The results can be stored and sent to data collector too. The instrument’s memory can store 36 measuring results together with diagrams. The stored data’s can be saved to SD-card or to PC with RS-232 cable. A narrow paper dot printer is also attachable to the ST-C3 for printing the results directly into a report. The stored data’s: - The measurement number - The measurement’s date and time - The measurement results with unit (primary and secondary torque values) - Instrument serial number (for easier identification if several units are in use) - The diagram of the measurement Graph drawing The ST-C3 draws torque-time diagram of the release (or application) process. Besides the diagram, primary and the secondary peak torques are displayed. So the unit can be used for measuring the temper evident band’s bridge breaking torque too in one step with the initial release torque measurement. The instrument can store both the results and the diagram. The stored results and diagrams can be recalled from the memory or exported to pc or printer.
