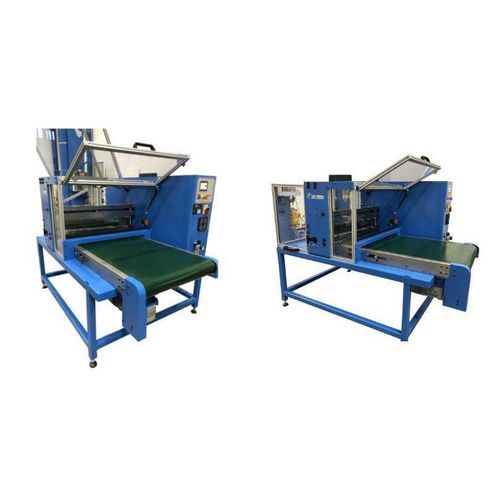

Blade cutting machine for rubberfor foamtextile
Add to favorites
Compare this product
Characteristics
- Technology
- blade
- Material
- for rubber, for foam, textile, for technical fabric, for composites, for cardboard
- Control type
- servo-driven
- Configuration
- large-format
- Other characteristics
- with servo-motor, pneumatic
- Z travel
40 mm
(2 in)- Tube diameter
130 mm
(5 in)- Cutting speed
Max.: 0.5 m/s
(1.64 ft/s)Min.: 0 m/s
(0 ft/s)- Repeatability
1 mm
(0.0394 in)- Maximum width
Max.: 2,000 mm
(79 in)Min.: 600 mm
(24 in)- Change time
7 s
Description
Overview
Double feed roller
Feeding and control
Cutting mechanism
Safety and frame
Characteristics / spécifications techniques
- This cross cutting machine wide series completes the range starting with a small 80 mm table cross cutting machine and is intended for cutting soft materials.
- Standard widths available: 600 mm and 2000 mm. Custom-made widths can also be provided.
Double feed roller
- Double feed roller incorporated upstream of the cross cutting machine to advance material according to programmed length.
- Roller opening and closing operated pneumatically to ease material handling.
- Both rollers: 130 mm diameter and covered in natural rubber.
Feeding and control
- Lower roller powered by a servo motor / servo drive unit ensuring stopping accuracy of +/- 1 mm.
- Feed speed adjustable from 0 to 30 m/min.
- Upper roller is free-rotating.
- Feed parameters (feed step, speed, acceleration, deceleration, etc.) are controlled from the control console.
- A manually controlled width guide is installed before the double roller.
Cutting mechanism
- Cross cutting performed by a machine with an upper blade moving vertically over a 40 mm stroke.
- Stroke driven by a crank and slider system powered by a drive unit; fixed lower counter-blade provides counterflow cutting.
Safety and frame
- Guarding around the whole production line to comply with current norms.
- Frame and stand constructed in aluminium and 'makrolon'.
Characteristics / spécifications techniques
- Cycle time for one 2000 mm feed and one cut (excluding evacuation time): 7 seconds.
- Standard material widths: 600 mm and 2000 mm (custom widths available).
- Feed rollers: diameter 130 mm, natural rubber covering.
- Lower roller drive: servo motor/servo drive; stopping accuracy +/- 1 mm.
- Feed speed range: 0–30 m/min.
- Upper blade vertical stroke: 40 mm.
- Construction: aluminium and makrolon frame; full guarding for safety compliance.
