Straight-knife cutting machine 995 seriesby heatingfor plasticsfor fabrics
Add to favorites
Compare this product
Characteristics
- Technology
- straight-knife, by heating
- Material
- for plastics, for fabrics
- Product handled
- adhesive tape, strap
- Control type
- PLC-controlled
- Applications
- for industrial applications, for the automotive industry, shoe industry, for packaging
- Workpiece loading
- with automatic loader
- Other characteristics
- automatic, programmable, with vacuum base
- Cutting speed
Max.: 0.3 m/s
(0.984 ft/s)Min.: 0 m/s
(0 ft/s)- Maximum width
100 mm
(4 in)
Description
Presentation

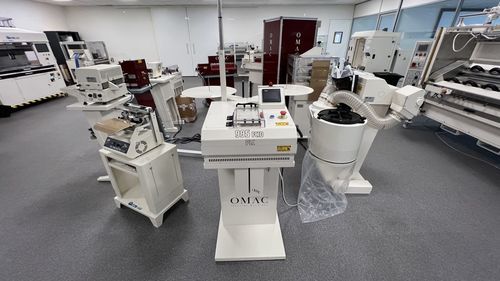

The OMAC 995 FCID PLC is designed to cut roll and bobbin materials to length automatically, including during idle cycles. It is dedicated to flexible materials up to 100 mm width. The machine offers high throughput with moderate power consumption. The FCID PLC model performs straight and left/right inclined hot cuts as well as cold cuts, with programmable cutting parameters.
Application fields
Options
Available versions
Characteristics / technical specifications
The OMAC 995 FCID PLC is designed to cut roll and bobbin materials to length automatically, including during idle cycles. It is dedicated to flexible materials up to 100 mm width. The machine offers high throughput with moderate power consumption. The FCID PLC model performs straight and left/right inclined hot cuts as well as cold cuts, with programmable cutting parameters.
Application fields
- Cords
- Straps
- Twines
- Zippers
- Hook-and-loop (Velcro)
- Tape
Options
- PLC control
- 996 material pre-unwinder
Available versions
- 995 C — hot straight cut
- 995 F — cold straight cut
- 995 FC — cold straight and hot straight cuts
- 995 FCID — cold straight and hot inclined cuts
Characteristics / technical specifications
- Programming of length, speed, dwell time at cut and number of pieces
- Speed: 0 to 18 m/min
- Maximum width: 100 mm
- Cut length: 0 to 30 m
- End-of-material detection
- Adjustable width guides with handwheel
- Integrated vacuum
- PLC control (option)
- Pre-unwinder 996 (option)
- Available in single-phase and three-phase versions
