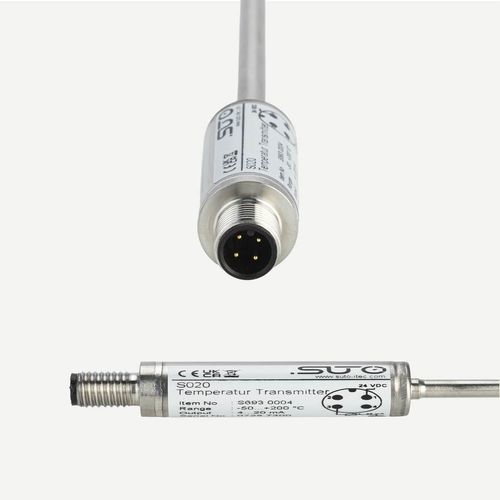

Pt1000 temperature sensor S020

insertion4-20 mAM12 connector

Product overview
The S020 temperature sensor for compressed air and gases provides an easy-to-install solution for industrial temperature monitoring. It measures the temperature of liquids, vapours, compressed air and gases within the specified operating limits and is suitable for inlet/outlet temperature checks on dryers and compressors.

Main features

• Sensor type: PT1000 Class A
• Analog output: 4 ... 20 mA (2-wire)
• Scaling: 4 mA = -50 °C, 20 mA = +200 °C (product page also indicates up to +250 °C)
• Accuracy: 0.5 % of reading + 0.2 % FS
• Stainless steel process connection and housing (1.4301)
• M12 connector for reliable electrical connection
• Available in two insertion lengths
• Ingress protection IP67, CE approved

Applications

• Temperature monitoring in compressed air systems
• Measuring inlet and outlet temperatures of dryers
• Monitoring compressor outlet temperature
• General temperature measurement of liquids, vapours and gases within operating limits

Technical specifications

• Measured variable: Temperature (liquids, vapours, compressed air, gases)
• Accuracy: 0.5 % of reading + 0.2 % FS
• Measuring range: -50 ... +200 °C (technical data); product page also lists -50 ... +250 °C
• Sensor type: PT1000 Class A
• Output / signal: 4 ... 20 mA (2-wire)
• Load: max. 250 Ohm
• Supply voltage: 16 ... 30 VDC
• Current consumption: max. 20 mA
• Electrical connection: M12 connector
• Process connection: Stainless steel 1.4301; 6 mm compression fitting
• Housing / metal parts: Stainless steel 1.4301
• Ingress protection: IP67
• Approvals: CE
• Weight: approx. 0.08 kg
• Ambient temperature (operation): -40 ... +90 °C
