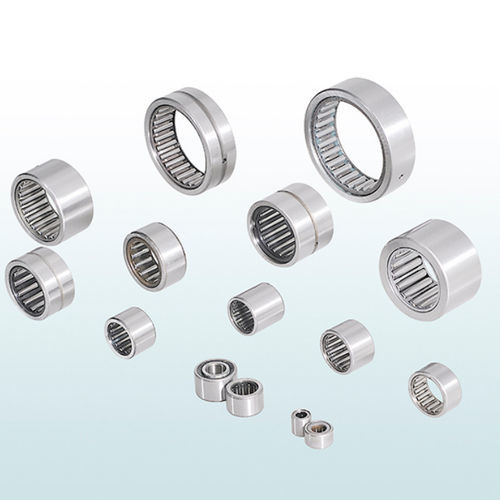

Needle roller bearing N seriesradialstainless steelwith cage
Add to favorites
Compare this product
Characteristics
- Rolling element
- needle roller
- Configuration
- radial
- Material
- stainless steel
- Other characteristics
- with cage, large, high-rigidity
- Inside diameter
Min.: 9 mm
(0.35 in)Max.: 100 mm
(3.94 in)- Outside diameter
Min.: 19 mm
(0.75 in)Max.: 140 mm
(5.51 in)- Width
Min.: 12 mm
(0.472 in)Max.: 40 mm
(1.575 in)
Description
SBF-needle roller bearing can bear large radial load. This kind of bearing has inner ring and no inner ring, and G2 grade needle roller is assembled. The upper and lower deviation of its average diameter is within 2um. Adopting high rigidity cage, the needle roller can be correctly guided parallel to the axis.
