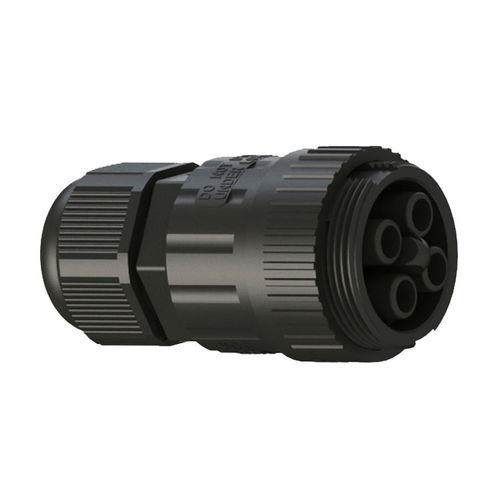

Electrical power supply connector EP040-2224-00Socketovermoldedstraight
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Format
- Socket, overmolded
- Shape
- straight, circular
- Connection type
- screw, screw-locked
- Size
- M23, M16
- Electrical characteristics
- power, 4-pole, AC
- Material
- polyamide, copper, nickel-plated
- Product applications
- transmission, for cables, building
- Domain
- for industry, for military applications, outdoor, for data transmission, for LED lighting
- Protection class
- IP68
- Other characteristics
- waterproof
- Primary current
17.5 A
- Voltage
450 V
- Operating temperature
-40 °C, 85 °C
(-40 °F, 185 °F)
Description
EP Series 4 Pin Female Cable Waterproof Connector
Contact Resistance≤10mΩ
Insulation Resistance≥500MΩ
Wire Gauge：0.5~2.5mm²
Connection Method：Screw Crimped
Housing Material：Engineering plastic
Conductor Material：Copper alloy with Nickel plated
Compliant with EN61984, GB/T34989, UL2238
Screw crimped, allows quick and easy wiring on site
Spinning thread locked, firm connection
Certified by TUV, CQC, UL, CE
