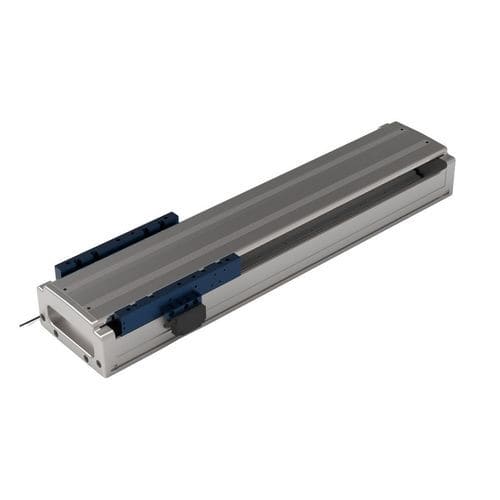

AC linear motor TLSA-120-C1

DCbrushlessflat

Introduction
The TLSA-120-C1 single-axis linear motor module (linear motor slide, linear actuator, precision positioning stage) converts electrical energy directly into linear mechanical motion. By eliminating intermediate transmission elements it provides a simplified structure, long stroke, high acceleration, fast response and high positioning accuracy.

• Typical applications: semiconductor manufacturing; new-energy battery production; 3C electronics assembly; precision machining; inspection equipment; laser cutting and welding; dispensing and coating systems; CNC machine tools; engraving machines.

Configuration & Performance

• Motor: TCQ-030-C1C2-UN-5.0 (standard cable length 5 m)
• Drive currents: continuous 2.2 A; peak 8.4 A
• Feedback: magnetic scale — 1 μm resolution (5 m cable); optical scale — 0.5 μm resolution (5 m cable)
• Guide system: 15 dual guide rails
• Thrust: continuous 120 N; peak 480 N
• Straightness: ±10 μm / 300 mm
• Repeatability: magnetic ±5 μm / 500 mm; optical ±2 μm / 500 mm
• Weight: 4.8 kg for 80 mm travel; +0.75 kg per additional 40 mm
• Installation modes: horizontal or side-mount
• Special dimensions and lengths available on request

Tags

• linear motor
• linear module
• precision linear actuator
• linear actuator
• electric linear actuator
• high speed linear actuator
• linear motor actuator

Features / Technical specifications

• Model designation: TLSA-120-C1
• Available travel (T): 80–1480 mm (series listed)
• Carriage widths A: 18 / 38 / 58 mm (depending on model)
• Total lengths L: series from 304 mm to 1704 mm (model-dependent)
• Recommended motor: TCQ-030-C1C2-UN-5.0 (5 m cable)
• Driver ratings: continuous current 2.2 A; peak current 8.4 A
• Feedback options: magnetic 1 μm; optical 0.5 μm (cables 5 m)
• Guide: 15 dual guide rails
• Thrust capacity: continuous 120 N; peak 480 N
• Accuracy / Repeatability: magnetic ±5 μm / 500 mm; optical ±2 μm / 500 mm
• Straightness tolerance: ±10 μm / 300 mm
• Weight reference: 4.8 kg (80 mm travel); +0.75 kg per 40 mm additional travel
• Installation: horizontal or side-mount
• Customization: special sizes and lengths available on request
