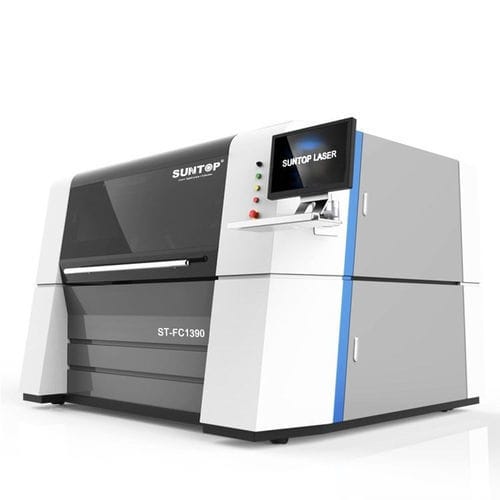

Fiber laser cutting machine ST-FC1390

for aluminumfor stainless steelfor carbon steel

Product BriefSmall Cutting Size Fiber Laser Cutting Machine is a powerful cutting device. With its high speed, high precision and high reliability, it can effectively meet the diverse needs of modern manufacturing for small and fine cutting, and has become an ideal choice in the industry. It is widely used in electronics, accessories, sheet metal processing and other industries.Product model: ST-FC6060/ST-FC1390/ST-FC2010Laser power: 1000W/1500W/2000W/3000W/4000WWorking area: 600*600//1300*900/2000*1000mm (Customizable)Product IntroductionWith the continuous development of the manufacturing industry, advanced cutting technology is increasingly used in various industries. Among them, fiber laser cutting technology is widely welcomed for its high efficiency, high precision and low operation and maintenance costs. Especially in the processing of small workpieces, fiber laser cutting machines have shown unparalleled advantages and have become an indispensable and important equipment in the industry.Fiber laser cutting technology uses a high-energy laser beam to cut materials, generating high temperatures by focusing the beam, so that the cutting materials melt, evaporate or burn quickly, achieving the purpose of efficient and precise cutting.With the popularity of personalized and customized products, the demand for processing small workpieces continues to grow, and traditional cutting methods can no longer meet the requirements of modern manufacturing. In this context, small-cutting-size fiber laser cutting machines are favored by the market for their precision, high speed and flexibility.Product Technical FeaturesFully enclosed design, green glass cover window can filter the laser beam, with laser protection function, in line with European standards.Adopting the famous Swiss brand Raytools laser cutting head, equipped with dynamic auto focus system, which can keep the same distance between the metal sheet and the laser head to achieve accurate cutting effect.Adopts imported servo motor and precision guide rail to ensure high cutting precision, good stability and longer life.With red light indication and pre-running function to ensure the fiber laser cutting machine can find the accurate cutting position.With automatic oil filling function, each magnetic stripe has an oil pipe, press the oil filling switch to automatically lubricate, oil filling once every two months.Specialized software can design or process graphics or text in real time. Flexible and easy to operate.Product DetailsBrand laser: Imported lasers are used, with stable performance, high precision, and a service life of up to 100,000 hours.Auto focus laser cutting head: The focal length can be automatically adjusted according to the thickness of the material, and the cutting speed can be cut at a high speed.Fast response to high-precision CNC and transmission system: It adopts marble base and gantry mobile platform structure machine tool, international famous brand linear motor or linear guide rail and precision screw drive, and bilateral servo motor synchronous drive to ensure stable transmission under high-speed cutting state and maintain excellent precision and speed. Greatly improve the long-term high-speed and stable operation of the bed.Independent research and development of gas path control system: Capacitive sensors can easily realize functions such as height automatic tracking, active collision avoidance, segmented perforation, and automatic search. Fast speed, high precision, simple operation, greatly improving the quality of cutting and saving costs.Integrated safety design: One-piece closed structure machine, the safety door filters the laser beam, does not hurt the eyes, prevents the debris from splashing on the human body during the cutting process, and protects the safety of the operator.Professional cutting software: High-efficiency automatic typesetting function, automatic optimization of cutting path, reducing sheet waste generation. With a high-definition screen, the work is convenient and efficient.Advantages of Small Size Laser Cutting MachineHigh-precision cutting: Micron-level cutting accuracy, suitable for fine and complex patterns, important for electronic accessories and jewelry.High-speed cutting: Excellent beam quality, high cutting speeds, improved efficiency for mass production.Takes up little space: Compact structure, suitable for limited production sites, flexible arrangement.Low operation and maintenance costs: High energy conversion efficiency, low power consumption, long life, low maintenance.User-friendly operation interface: Modern CNC systems, user-friendly interfaces, integrated software system.Environmental protection characteristics: Less waste and pollution, low noise.Suitable for small batch production: Meets personalized needs, quick response to market changes.Product SpecificationsModelST-FC6060/ST-FC1390/ST-FC2010Table Max. cutting size600*600/1300*900mm/2000*1000mmLaser power1000W/1500W/2000W/3000W/4000WCutting thickness0.5-20mm (depend on the actual laser power)Repeat positioning accuracy±0.01mm/mMaximum operating speed40m/minLaser typeFiber LaserLaser sourceRaycus Brand (MAX, IPG can be choose)Cooling modeWater CoolingMaximum acceleration0.5GLaser wavelength1064nmTransmissionHigh precision screw guide transmissionGraphic format supportedAI, PLT, DXF, BMP, DST, DWG, DXPWorking voltage220V±10%, 50-60Hz / 380V±10%, 50-60HZApplicable materialAll metal (stainless steel, brass, aluminum, titanium steel, etc.)Machine weight1300KG (depending on actual model)Machine dimension (L*W*H)1650*1360*1880mm (depending on actual model)What Materials Can be Cut?Mainly suitable for carbon steel, stainless steel, copper, aluminum and alloys, titanium and alloys and other metal materials.What Are Laser Cutting Used For?Metal processing: Cutting all kinds of metal materials, including stainless steel, carbon steel, aluminum alloy, copper, brass, and other non-ferrous metals.Sheet metal manufacturing: High efficiency plate cutting for industrial equipment shell, sheet metal chassis, structural parts, etc.Automotive manufacturing: Cutting and processing various automotive parts, such as body frames, parts brackets, bumpers, etc.Aerospace: Cutting aircraft structural parts, missile and satellite parts, aviation equipment, etc.Advertising and signage: Making various advertising signs, signboards, display props, complex fonts and patterns.Appliance manufacturing: Manufacturing metal casings and components for refrigerators, washing machines, air conditioners, etc.Construction and decoration: Cutting complex shapes of metal decorative parts, such as iron railing, metal curtain wall, creative metal devices.Medical equipment: Manufacturing high-precision and complex medical equipment parts, such as instrument housings, surgical knives, etc.Crafts and gifts: Production of exquisite handicrafts and customized gifts, such as engraving, cutting artwork, customized souvenirs.FAQ (Selection)Warranty: 2 years warranty and lifelong maintenance.Maintenance: Simple, recommended to regularly check the laser light path, cooling system, and clean the optical lens.Energy consumption: Low compared to other cutting methods, depends on the model and process.Safety: Equipped with laser protection devices and emergency stop buttons.Software: Equipped with user-friendly CNC software, supports design import from AutoCAD, SolidWorks, etc.Training: Operation interface is intuitive, operators can quickly master the use after simple training.Caractéristiques / Spécifications techniquesModel: ST-FC6060/ST-FC1390/ST-FC2010Table Max. cutting size: 600*600/1300*900mm/2000*1000mmLaser power: 1000W/1500W/2000W/3000W/4000WCutting thickness: 0.5-20mm (depend on the actual laser power)Repeat positioning accuracy: ±0.01mm/mMaximum operating speed: 40m/minLaser type: Fiber LaserLaser source: Raycus Brand (MAX, IPG can be choose)Cooling mode: Water CoolingMaximum acceleration: 0.5GLaser wavelength: 1064nmTransmission: High precision screw guide transmissionGraphic format supported: AI, PLT, DXF, BMP, DST, DWG, DXPWorking voltage: 220V±10%, 50-60Hz / 380V±10%, 50-60HZApplicable material: All metal (stainless steel, brass, aluminum, titanium steel, etc.)Machine weight: 1300KG (depending on actual model)Machine dimension (L*W*H): 1650*1360*1880mm (depending on actual model)
