Axial fan SJ13538 seriesACaluminumplastic
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Supply voltage
- AC
- Material
- aluminum, plastic
- Other characteristics
- IP55, IP44
- Air flow
113 ft³/min, 127 ft³/min
(3.2 m³/min, 3.596 m³/min)
Description

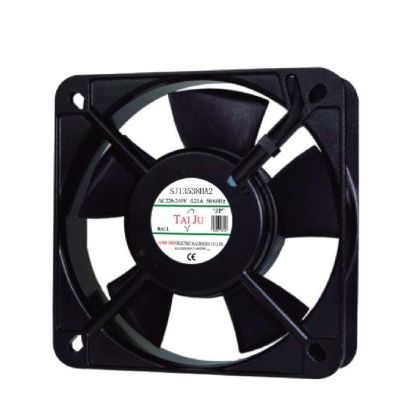

TAIWAN SANJU SJ13538 AC Axial Fan
SIZE： 135×135×38
Frame Type： Alumium painted with plastic UL94V-0
Impeller：Thermoplastic UL94V-0 P.B.T.
Insulation Resistance： Min. 100 Mohm at 500 VDC between terminal {wire} {+} and frame
Bearing： Double ball bearing / Sleeve bearing
Dielectric withstand：1500 VAC for 1 second between terminal {wire} {+} and frame
Voltage： AC 110V, 220V
Life Expectancy for Ball bearing： 60,000 hours at 20℃
Life Expectancy for Sleeve bearing：30,000 hours at 20℃
Operating Temperature: -20℃～85℃ ordinary humidity
Storage Temperature: -30℃～140℃ ordinary humidity
Ingress of Protection: IP44 / IP55
