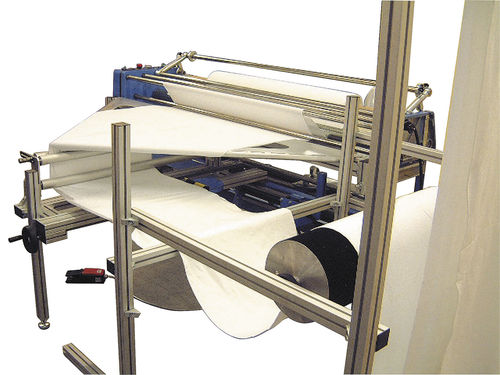

Open-knit fabric slitter TSO 380 G/GF

automatic

Huge fabric savings. Compared to the traditional method of producing two rolls of open-knit fabric from tubular knit for producing of tape or binding. Main features: • Photocell edge alignment • Max Tubular fabric width l 00 cm (40″)* • Max open width 200 cm (78″)* • Equipped with Automatic Prefeed device with tension control before cutting • Electronic tension/ control of fabric take-up • Semi-automatic blade sharpening device • Advanced electronically controlled speed regulation allowing step-less speed control up to 30 meters/minute • Electronic meter/yardage counter for accurate control of rolled length or pre-setting of the required length • Out of fabric auto stop • Option: electronic pre-tension control between cutting and fabric take-up (GF) SPECIFICATIONS Maximum tubular fabric width - 1000 mm (40″) Maximal open width - 2000 mm (78″) Max roll diameter - 280 mm (11″) Reroll shaft diameter - 48 mm (1 7/8″) Cardboard core inside diameter - 50 mm (2″) Cutting blade - 150 mm (6″) Running speed - infinitely variable, up to 30m/min (33 yards/min), electronic Motors - Main motor - 1.1 kW Motor for cutter blade - 0.18 kW Power - 230 V, single-phase, 50/60 ft Floor space - 350×250 cm (11.5×8.5 ft) Net weight - 600 kg (1300 lbs)
