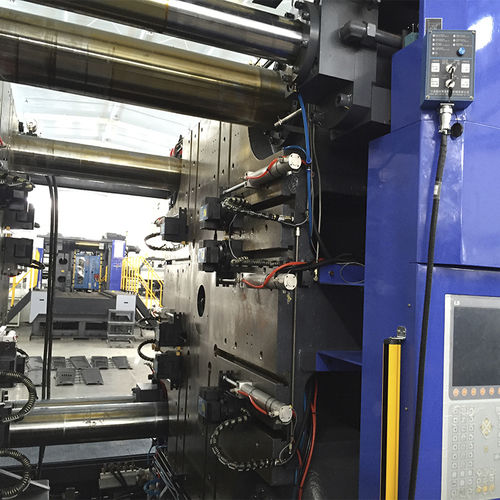

T slot clamping system YM serieshydraulicmachiningfor injection molds
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Applications
- machining, for injection molds, for quick die change on press, for T slot
- Other characteristics
- automatic, quick, adjustable, safety, heavy-duty, self-locking
- Clamping force
Max.: 4,000 kN
Min.: 60 kN
Description
Omron PLC control system
Reduce die change timing
Reduce human risk
Reduce labor cost and strength
Independent power unit
Functional Characteristics
SMC automatic cylinders which improve automation easy to use
Equipped with air cylinder to improve the automation, shorten the time to exchange mold and reduce labor intensity.
Self-lock Valve
Self-lock valve ensure all clampers keeping clamping force under the condition of oil hose broken.
Each clamper equipped with a self-lock valve to ensure the clamping force when oil pipe broken.
Combination of pneumatic hydraulic pump station is oil supply system for the whole quick die change system
1.This is oil supply system of the whole QDCS, which adopts imported air-driven pump; double and single pump design for power output.
2.When pump station stops pressurizing, the system is in low pressure state and no energy- consuming.
3.Using patented technology group valve, Independent four circuit design, when power off and air off, the system self - lock still keeps the pressure.
4.Pneumatic components adopt Japan SMC, and imported seals.
PLC Control
1.Using omron PLC control system.
2.PLC communicate intelligently with machine and multi-layer safety interlock avoiding operational errors.
3.Specific single side die change function, double confirmation about avoiding operational errors. Equipped with key switch to prevent the artificial operational errors.
4.If machine or die change is abnormal, then clampers starts warning and injection machine stop working automatically.
5.Integrated operation panel, simple operation.
Reduce die change timing
Reduce human risk
Reduce labor cost and strength
Independent power unit
Functional Characteristics
SMC automatic cylinders which improve automation easy to use
Equipped with air cylinder to improve the automation, shorten the time to exchange mold and reduce labor intensity.
Self-lock Valve
Self-lock valve ensure all clampers keeping clamping force under the condition of oil hose broken.
Each clamper equipped with a self-lock valve to ensure the clamping force when oil pipe broken.
Combination of pneumatic hydraulic pump station is oil supply system for the whole quick die change system
1.This is oil supply system of the whole QDCS, which adopts imported air-driven pump; double and single pump design for power output.
2.When pump station stops pressurizing, the system is in low pressure state and no energy- consuming.
3.Using patented technology group valve, Independent four circuit design, when power off and air off, the system self - lock still keeps the pressure.
4.Pneumatic components adopt Japan SMC, and imported seals.
PLC Control
1.Using omron PLC control system.
2.PLC communicate intelligently with machine and multi-layer safety interlock avoiding operational errors.
3.Specific single side die change function, double confirmation about avoiding operational errors. Equipped with key switch to prevent the artificial operational errors.
4.If machine or die change is abnormal, then clampers starts warning and injection machine stop working automatically.
5.Integrated operation panel, simple operation.
