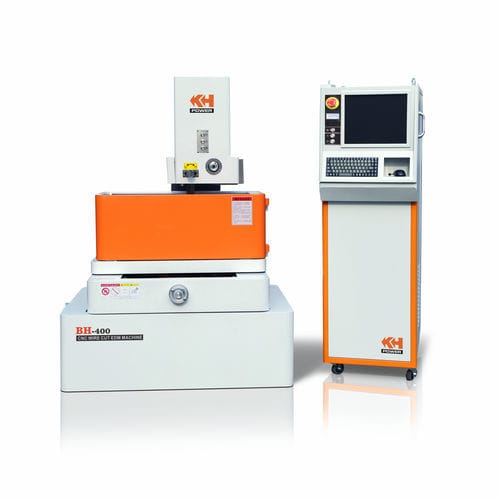

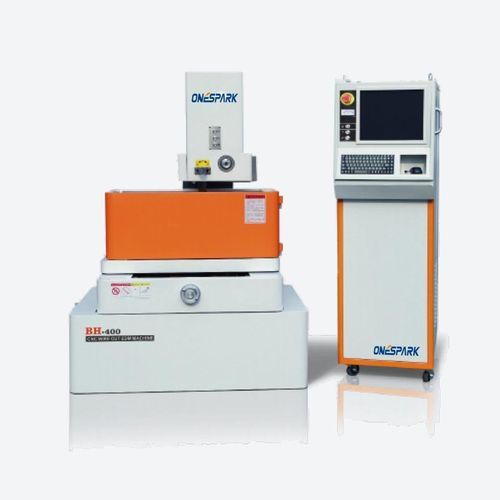

Wire-cut EDM BH-630

CNC

•T type mechanical structure,automatic tightening system; •High efficiency and low consumption digital high frequency; •Max cutting speed 200mm² /min; •Each 400,000mm² wear 0.01mm diameter wire; •Best Roughness ≤ 0.8 μm; •Standard installed Taiwan Linear Guide, ball screws; •Step Control WEDM Cabinet( Optional AC Servo Control Cabinet ). MODEL: BH-630 Work Table Size(LxW) 1170×830 mm Work Table Travel(XxY) 800×630mm Max. Cut Thickness(Z) 300mm Max.capacity loading 100KGS Max.Cutting Speed 180mm²/min Max.current 8A Process Roughness(Ra.) One Cut≤2.3um Second Cut≤1.6um Third Cut ≤1.0um Cutting Accuracy straight line 0.005 octagonal 0.01 Jump Accuracy 0.01mm/0-200mm 0.015/0-350mm 0.02mm/0-500mm Machine taper ±3°/80 (Optional ±10°/50) Wire diameter range 0.12-0.25 (standard 0.18) Motor drive system X,Y STEP MOTOR(OPTIONAL:AC SERVO MOTOR) Water Tank High Pressure WEDM-LS filter Volume 100L Working liquid Water Based Liquid Consumed Power ≤3.5 Power Supply 380V/50HZ/3PH Machine Weight 3450KGS Machine Dimension 2070×1655×2060 mm Outside dimension 2340×2100×2160 mm
