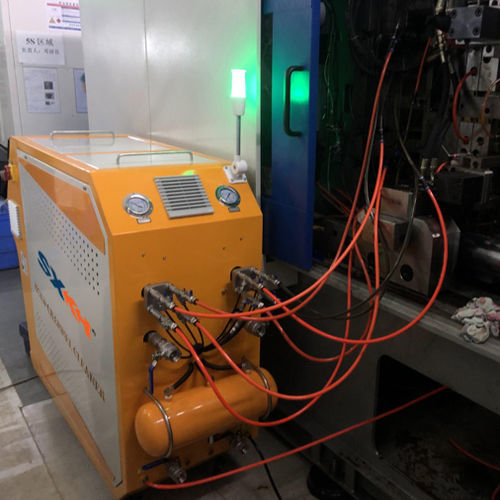

Water jet cleaning machine CMG-22

automaticfor castingfor motors

Model - - - CMG-22
Size(L*W*H) - - - L1400*W500*H1200mm
Pump power - - - 2.2KW
Water tank - - - 50L+50LHigh and low alarm
Flowmeter - - - Electromagnetic type SUS304
Rotary valve - - - Electromagnetic pneumatic SUS304
Booster valve - - - SMC,Equipment built-in integrated device
Bypass switch - - - DN15(SUS304)
Operation control - - Touch Screen + PLC
Impulsive control - - Micro CP
Waterway detection - - Micro CP
Leak detection - - - Micro CP
Cleaning record - - - Micro CP Automatic Recording
Record storage - - - SD card
Connection to mold(1). 6(IN)+6(OUT)3/8"*12
Connection to mold(2) 1(IN)+1(OUT), 1'' *2

Main features
* - No need to remove mould cleaning and maintenance
* - Cavitation blasting plus positive and negative bidirectional functions to achieve rapid cleaning
* - Custom time, Automatic operation
* - Record cleaning information
* - Double water tank, meet the physical and chemical dual-purpose cleaning mode
* - Reduce time, manpower, material and financial resources
* - Effectively shorten the forming cycle and improve the cooling efficiency

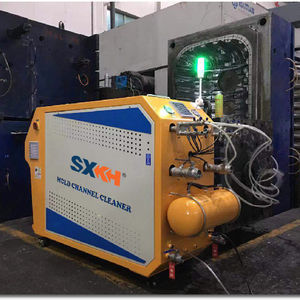

mold waterway cleaning machine
1. Both physical and chemical clean mode: pulse, cavitation blasting, bidirectional circulation and food grade chemical agent
2. Effective way in cleaning the scale, rust, and other impurity on the inner wall of mold channel
3. Leak, pressure detection function
