Transfer AGV AGV Series
handlingtransportheavy-duty

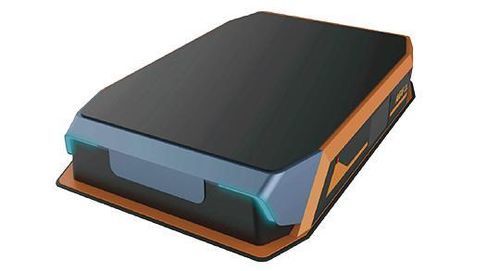

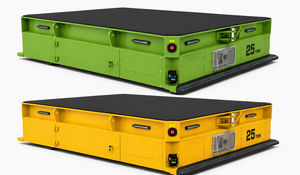

Transfer AGV - AGV Series - SXKH GLOBAL - handling / transport / heavy-duty
Transfer AGV - AGV Series - SXKH GLOBAL - handling / transport / heavy-duty
Transfer AGV - AGV Series - SXKH GLOBAL - handling / transport / heavy-duty - image - 2
Transfer AGV - AGV Series - SXKH GLOBAL - handling / transport / heavy-duty - image - 3
Add to favorites
Compare this product
Go to the SXKH GLOBAL website for more information

Characteristics

Type
transfer, handling, transport
Applications
heavy-duty, for heavy loads
Application domain
for the automobile industry, for the manufacturing industry
Motor type
battery-powered, electric
Control
multidirectional, radio-controlled
Specifications
with AC motor, eco-friendly, modular, low-noise
Load

Min.: 2,000 kg
(4,409 lb)

Max.: 800,000 kg
(1,763,698 lb)

Description

Overview
  • AGV Series mold handling vehicle designed for moving heavy molds and tooling within production facilities. Available with manual remote-control operation for safe on-demand maneuvering.
  • Load capacity ranges: 2–5T, 10–40T, 50–200T, 300–800T to cover light to very heavy tooling transfers.
  • Three selectable drive wheel types to match required load-bearing and floor conditions.
  • Multi-directional movement: lateral (sideways), longitudinal (front-to-back) and crab (diagonal) for precise alignment in tight production cells.
  • Electric drive with low noise and zero local emissions for factory environments.
  • Equipped with multiple safety protection devices and modular electrical control for reliable operation and straightforward integration.
  • Battery and motor protection systems extend component life and reduce downtime.


Applications
  • Transfer of molds in injection molding and die-casting shops.
  • Tooling repositioning between machines, storage and assembly stations.
  • Heavy tooling handling in automotive, appliance and large-part manufacturing.


Images provided on page
  • Product images illustrating vehicle configuration, drive wheel options and typical handling scenarios.


Technical specifications
  • Load capacity options: 2–5T, 10–40T, 50–200T, 300–800T.
  • Drive wheel options: three types selectable by required load-bearing capacity and floor surface.
  • Supported drive directions: lateral, longitudinal, crab.
  • Operation mode: manual remote control for on-site handling; electric drive with zero emissions.
  • Noise level: low-noise design suitable for production environments.
  • Control system: modular electrical control for smooth, precise movement and easier maintenance.
  • Protection features: battery management and motor protection to extend service life.


Safety and control
  • Multiple safety devices (emergency stop, obstacle detection, overload protection) to protect operators and tooling.
  • Manual remote control provides precise operator input during complex maneuvers.
  • Modular electronics allow integration with factory control systems and simplify diagnostics.


Options and maintenance
  • Customizable drive wheel types and platform interfaces to match specific tooling geometries.
  • Charging and battery options available to suit shift patterns.
  • Maintenance-friendly design with accessible components and optional service contracts.
