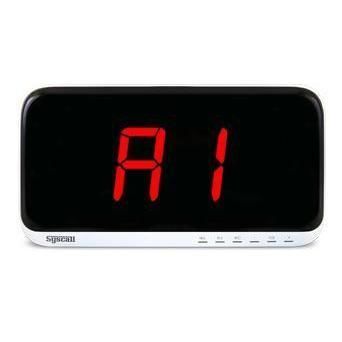

Wireless receiver SR-A Series

radioFSKtelemetry

Product

• Wireless receiver monitor SR-A Series

Description

• Available in multiple display configurations (2–10 digits; single or multiple displays) to adapt to various service environments.
• Simple setup via 6 touch keys and English voice guidance for status notifications.
• Displays the calling device number so staff can identify which table or location requires service.

Available models / display options
SR-A2001: 2 digits, 1 display
SR-A2003: 2 digits, 3 displays
SR-A330: 3 digits, 3 displays
SR-A440: 4 digits, 4 displays
SR-AA10: 10 digits, 1 display

Features

• High-performance antenna for extended operating range
• English voice guidance
• Registers up to 450 call buttons
• Supports wireless bell data copy
• Includes wall bracket for quick installation

Benefits

• Improves service responsiveness
• Increases customer satisfaction
• Optimizes staffing efficiency
• Streamlines workflow

Operation (system map)

• Press the call button when service is required.
• The receiver displays the call number and emits a sound to notify staff.

Specification
Dimension: W280 x L145 x H40 mm
Weight: 600 g
Color: White
Key: Touch 6ch
Frequency: FSK/433.42 MHz
Power Source: DC12V / 1A
Compatibility: All Syscall transmitters and the repeater

Technical specifications

• Dimension: W280 x L145 x H40 mm
• Weight: 600 g
• Color: White
• Key: Touch 6ch
• Frequency: FSK/433.42 MHz
• Power Source: DC12V / 1A
• Compatibility: All Syscall transmitters and the repeater
• High-performance antenna for improved working range
• English voice guidance
• Up to 450 call buttons can be registered
• Wireless bell data copy supported
• Includes wall bracket for installation
