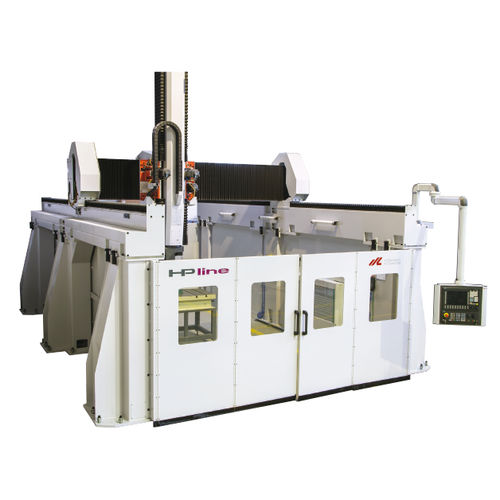

Large workpiece CNC machining center HP Line
5-axisverticalgantry

large workpiece CNC machining center
large workpiece CNC machining center
large workpiece CNC machining center
large workpiece CNC machining center
large workpiece CNC machining center
large workpiece CNC machining center
Add to favorites
Compare this product

Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Structure
gantry, with fixed table
Machined material
for aluminum, for wood, for composites, for plastics
Other characteristics
milling, high-speed, modular, for large workpieces, for aeronautics, for aluminum profiles, for the automobile industry, for the aeronautical industry, for matrices
X travel

Max.: 4,000 µm

Min.: 2,800 µm

Y travel

Max.: 12,000 mm (472 in)

Min.: 2,000 mm (79 in)

Z travel

Max.: 2,500 mm (98 in)

Min.: 1,500 mm (59 in)

Rotational speed

Max.: 20,000 rpm (125,664 rad.min-1)

Min.: 0 rpm (0 rad.min-1)

Power

22 kW, 25 kW (29.91 hp)

Description

MILLING AND 3D MACHINING of large-sized models IN A SINGLE PLACE High speed milling and finishing of non-ferrous materials for large components with a complex design HP line is the modular range of the HP series. It is used to process, in a single place, large-sized style models made in typical materials such as polyurethane, resin, wood, etc. Also ideal to process structures rolled or reinforced with fibre, fibreglass, composite materials, components with a complex shape used in various application industries, such as the nautical, aerospace, ground transport, energy sectors and many other industrial fields. The worktop, which is separate from the machine structure, can be customised to specific applications. It can be configured with a monolithic table with T-slots, secured to the floor or recessed, with guide rails for large-sized workpiece-holder carriages, or with framework structures for customised equipment, etc. GENERAL FEATURES The “HPline” Machining Centre is a milling machine 5-axis on the tool and commanded by a NC, consisting of a structure with Cartesian axes and a mobile crossbeam: - Moving crossbeam sliding on guides positioned on side pillars: "Y" longitudinal axis. - The carriage of the “X” transversal axis, which moves the vertical arm for the Z axis, slides on the beam. - The axis end is the fastening element of the operating unit. - Separate worktop from the machine bases
