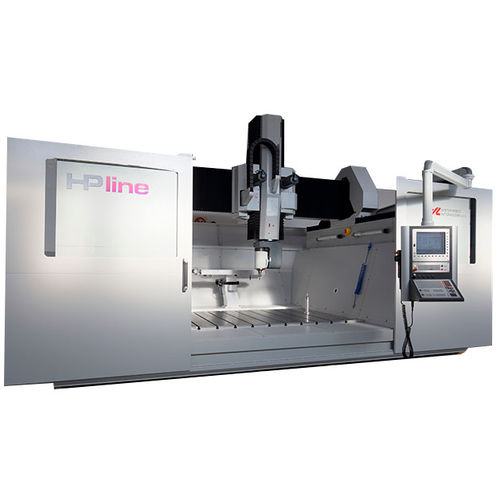

5-axis machining center HPline26
verticalgantrywith fixed table

5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
Add to favorites
Compare this product

Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Structure
gantry, with fixed table
Machined material
for aluminum, for wood, for composites
Other characteristics
high-speed, high-performance, compact, milling, medium-sized, for large workpieces, for aeronautics, for the automobile industry, for the aluminum industry, for the aeronautical industry
X travel

2,400 mm, 2,800 mm (94 in)

Y travel

1,700 mm, 3,000 mm, 4,000 mm (67 in)

Z travel

1,000 mm, 1,500 mm (39 in)

Rotational speed

Max.: 20,000 rpm (125,664 rad.min-1)

Min.: 0 rpm (0 rad.min-1)

Power

22 kW, 25 kW (29.91 hp)

Description

GREAT STABILITY AND PERFORMANCE FOR MILLING MEDIUM-SIZED MODELS High speed roughing and finishing of non-ferrous materials, even with considerable stress The HP26 machining centre is the most compact in the series. The structure, which integrates the side shoulders to the base, allows for great stability and repeatability of precision and quality machining, even with considerable stress. The structure with a moving crossbeam running on two side shoulders and total perimeter enclosure with front sliding doors allows for easy access to load/unload the workpiece and maximum safety for the operator. HP26 is excellent for high speed milling on medium-sized composite or light alloy models and components. Let us guide you with our technical advice for your project and chose the safety of guaranteed reliability. GENERAL FEATURES The “HPline 26” Machining Centre is a milling machine 5-axis on the tool and commanded by a NC, consisting of a structure with Cartesian axes and a mobile crossbeam: - The base, a single block whose structure consists of a built-in worktop, supports, on both sides, the guides on which the sliding crossbeam has been placed: the “Y” longitudinal axis. - On the crossbeam slide the carriage of the “Y” transversal axis, on which moves the vertical arm for the “Z” axis. - The Z axis arm end is the fastening element of the operating unit.
