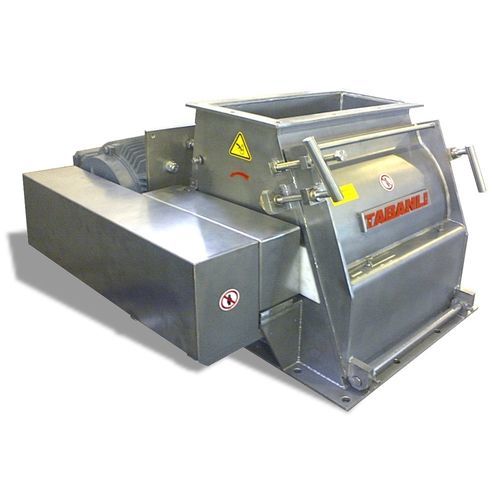

Food grinding mill THM01
hammerhorizontalstainless steel

Food grinding mill - THM01 - TABANLI MAKINA SAN VE TIC LTD STI - hammer / horizontal / stainless steel

Add to favorites

Compare this product

Go to the TABANLI MAKINA SAN VE TIC LTD STI website for more information

Characteristics

Product applications

food

Technology

hammer

Orientation

horizontal

Material of the grinding tool

stainless steel

Sector

for the food industry

Output

Min.: 10 t/h
(6 lb/s)

Max.: 25 t/h
(15 lb/s)

Description

HAMMER MILL for milling (crushing) of apple, quince, carrot and etc. Capacity: 5 to 20 tons/hr, depends on kind of product. (you can reach up to 15-20tons/h as apple input capacity and 5-7 tons/h as carrot input capacity) • Construction in AISI 304 Cr-Ni stainless steel. • Rotary rotor with hammers and perforated sieve. • Driven by a 30 kw motor. 380VAC, 3ph., 50Hz. • Overall Dimensions (L*W*H) : 123cm.*94cm.*65cm. (48” x 37” x 26”) • Net Weight : 550kg. (1212 lbs) • Electrical control panel excluded.
