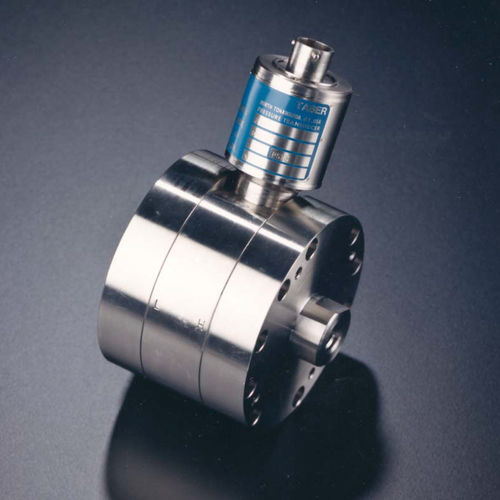

Differential pressure transducer 2412 membraneanalog36VDC
Add to favorites
Compare this product
Characteristics
- Pressure type
- differential
- Technology
- membrane
- Output
- analog
- Supply voltage
- 36VDC
- Mounting
- threaded
- Fluid
- for gas, for liquids
- Material
- stainless steel
- Pressure range
Max.: 500 psi
Min.: 0 psi
- Precision
0.4 %
- Process temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
Offers a high-level output of 0-5 VDC with an excitation of 20-36 VDC unregulated. The electronic circuit of the Model 2412 differential transducer offers DC isolation from excitation to signal output and is short circuit protected. Optional EMI/RFI circuit protection to MIL461/462F is also available.
