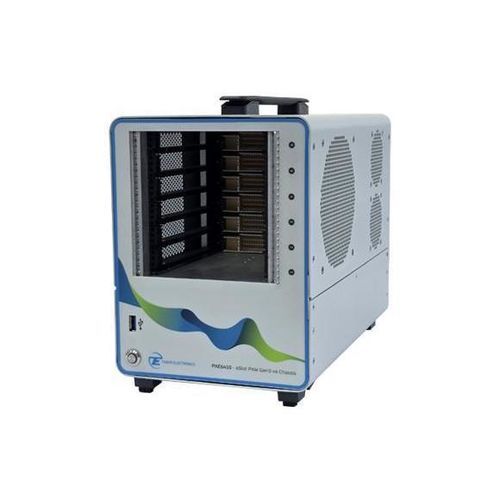

Embedded chassis PXE6410

6 slotsPXI

Overview
The PXE6410 is a PXIe-based 6-slot Gen3 x4 chassis designed to host Tabor Proteus PXIe AWG modules and TE330x PXIe RF amplifiers. The system includes an embedded PC with an internal 120 GB SSD and supports control via USB-C or 1000BASE-T LAN. Its modular architecture allows later expansion to additional channels, higher sample rates or increased output power.

Key features

• PXIe-based 6-slot Gen3 x4 chassis
• Intel Pentium embedded controller (3 MB Cache, 2.20 GHz)
• 120 GB internal SSD
• Windows 10 IoT operating system
• 3 × USB ports and HDMI output
• Remote control via USB-C or 1000BASE-T LAN
• Supports Tabor Proteus PXIe AWG modules and TE330x PXIe RF amplifiers

Characteristics
PXIe Gen3 x4 combines the PCI Express Gen3 standard with a four-lane (x4) bus width to deliver improved data throughput, low latency and advanced synchronization suitable for high-performance modular instrumentation.

Ordering Info
Model | Description
PXE6410 | 6 Slots Chassis.

Options
Name | Description
COMP | —
PD-Rack Mount | Rack mount kit

Accessories
Name | Description
SLOT1 | Single Slot Width Blank Covers (Required for cooling)

Technical specifications

• Form factor: PXIe chassis, 6 usable slots
• Backplane: PCIe Gen3 x4 configuration
• Embedded controller: Intel Pentium, 3 MB Cache, 2.20 GHz
• Storage: 120 GB internal SSD
• OS: Windows 10 IoT
• I/O: 3 × USB ports, HDMI, USB-C, 1000BASE-T LAN
• Modularity: Accepts Proteus PXIe AWG modules and TE330x PXIe RF amplifiers; supports expansion to additional channels, higher sample rates and greater output power
