Embedded chassis PXE21100rack-mount19"4U
Add to favorites
Compare this product
Characteristics
- Mounting
- rack-mount, 19", embedded
- Size
- 4U
- Extension slots
- backplane, 21 slots
- Other characteristics
- PXI
Description
Overview

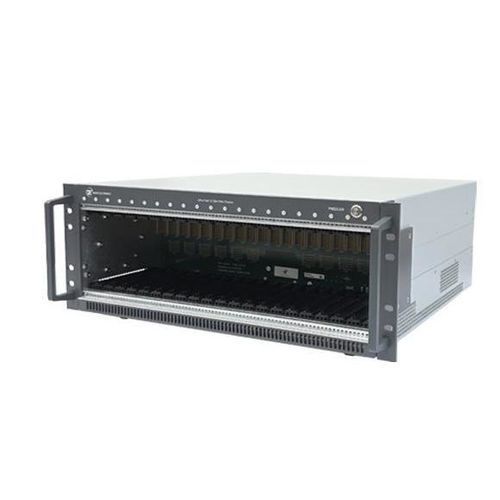

The PXE21100 is a 4U, 19in PXIe chassis with 21 PXIe Gen4 slots designed for high-density, high-bandwidth measurement systems. It supports Tabor Proteus AWGs, TE3xxx PXIe RF amplifiers and other PXIe-compliant modules. The chassis includes a standard embedded Intel i5-13500E controller with a 128GB SSD, DisplayPort, USB interfaces, USB-C and 2.5Gb Ethernet. The embedded PC can be upgraded to i9-13900E, up to 256GB RAM and up to 960GB SSD.
Key Highlights
Features
Ordering Information
Model | Description
PXE21100 | 21-slot PXIe chassis
Options
Name | Description
COMP | Upgrade to i9-13900E, 256GB RAM and 960GB SSD
Accessories
Name | Description
PXE21106 | Multi-channel Mesh synchronization unit
Technical specifications
The PXE21100 is a 4U, 19in PXIe chassis with 21 PXIe Gen4 slots designed for high-density, high-bandwidth measurement systems. It supports Tabor Proteus AWGs, TE3xxx PXIe RF amplifiers and other PXIe-compliant modules. The chassis includes a standard embedded Intel i5-13500E controller with a 128GB SSD, DisplayPort, USB interfaces, USB-C and 2.5Gb Ethernet. The embedded PC can be upgraded to i9-13900E, up to 256GB RAM and up to 960GB SSD.
Key Highlights
- 21 PXIe slots in a 19in 4U form factor to maximize rack density
- PCIe Gen4 backplane for maximum data throughput between modules
- Embedded controller: i5-13500E standard; upgradeable to i9-13900E
- Multi-chassis synchronization via PXE21106 Mesh controller for phase-coherent systems
- Smart fan control and chassis status monitoring for reliable operation
- High-speed connectivity: 2.5GbE, rear RJ45, 3 x USB 2.0 Type A, 1 x USB 3.2 Gen1 Type A
Features
- Form factor: 4U, 19in — 438.8 mm x 176.0 mm x 449.5 mm
- Embedded controller: Intel i5-13500E (standard); RAM 16GB (upgradeable to 256GB); SSD 128GB (upgradeable to 960GB)
- Backplane: PCIe Gen4, 21 usable PXIe slots
- Scale to multiple chassis: connect and synchronize multiple chassis; PXE21106 synchronizes up to 6 chassis — use multiple units for larger systems
Ordering Information
Model | Description
PXE21100 | 21-slot PXIe chassis
Options
Name | Description
COMP | Upgrade to i9-13900E, 256GB RAM and 960GB SSD
Accessories
Name | Description
PXE21106 | Multi-channel Mesh synchronization unit
Technical specifications
- Chassis type: PXIe, 4U, 19in
- Slots: 21 usable PXIe Gen4 slots (PCIe Gen4 backplane)
- Embedded PC (standard): Intel i5-13500E, 16GB RAM, 128GB SSD; upgrade options to i9-13900E, up to 256GB RAM, up to 960GB SSD
- Connectivity: DisplayPort, front/back USB for mouse & keyboard, USB-C control, rear RJ45 2.5Gb Ethernet
- Rear I/O: 3 x USB 2.0 Type A, 1 x USB 3.2 Gen1 Type A, RJ45
- Cooling & monitoring: smart fan control and chassis status monitoring
- Multi-chassis synchronization: PXE21106 Mesh controller — synchronize up to 6 chassis; multiple PXE21106 units for larger systems
- Use cases: supports Proteus AWGs, TE3xxx PXIe RF amplifiers and other PXIe-compliant modules for high-density, high-speed measurement applications
