Signal amplifier 9200

power2-channelcurrent output

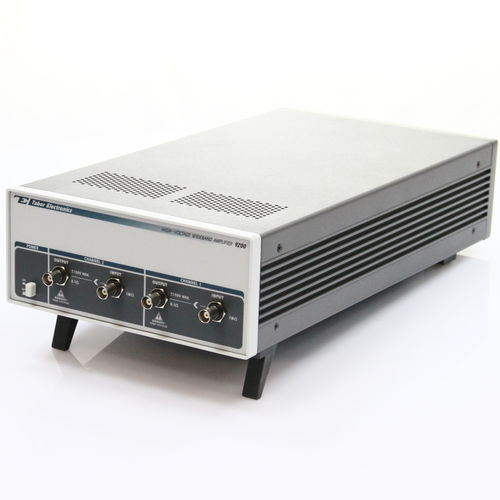

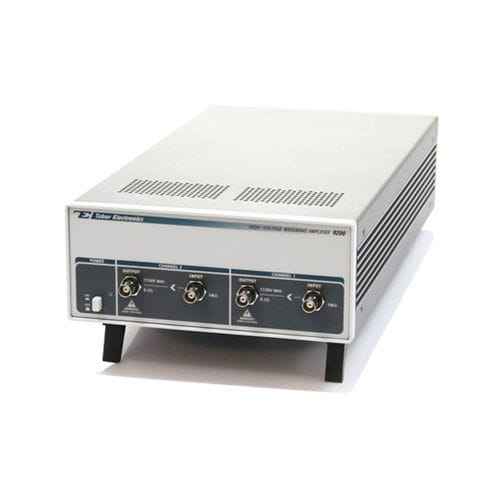

Model 9200 is a Single/Dual Channel, 2U, half-rack size, bench-top power amplifier designed for signal amplification. With unprecedented signal purity, Model 9200 amplifies signals from DC to over 500kHz. The unit has a fixed gain of x15 however the same amplifier is available with custom gain and no signal purity or performance degradation whatsoever. Full power bandwidth from DC to >500kHz Slew rate to 200V/µs Low distortion Low cost Features Solves Common Problems Model 9200 operates as an amplifying buffer for signals emitted from waveform, function, or pulse generators. Most of these generators produce signals limited to 20Vp-p into high impedance. Model 9200 can convert these voltages to levels as high as 300Vp-p. The amplifier has a current driving capability of ±100mA per channel from a 0.1? source. While the output can drive small capacitive or inductive loads, for full high speed potential it is recommended that the load characteristics should be mainly resistive. Model 9200 can withstand load capacitance and inductance up to 100pF and 0.5mH without any performance deterioration. Ground Level The advanced power amplifier is supplied with floating input and output connectors allowing flotation from ground level up to 250VDC. The only limitation is that both the input and output grounds must connect to the same level. This capability is extremely important in applications where the amplifying device must reside on the same ground level as its source. The floating capability can be added or removed using a simple, user-accessible, jumper connection. Target Applications The amplifier case was designed to stack on top or below other Tabor products.
