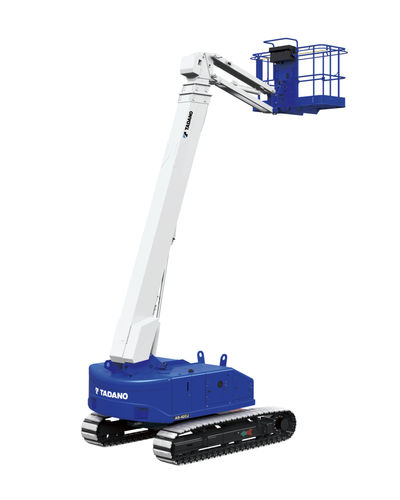

Crawler telescopic boom lift AS-42CJ

trackdiesel engineindoor

The AS-42CJ reaches a maximum height of 48 feet with an outreach of 36.8 feet. It features an additional jib for enhanced maneuverability. Product description Jib-Equipped Mid-Range Telescopic Crawler Boom The Tadano AS-42CJ Telescopic Crawler Boom combines versatility with reach, making it a solution for both indoor and outdoor applications. It’s jibbed design offers a maximum working height of 48.5 feet and a horizontal reach of 36.7 feet, allowing this machine to access challenging areas that require reaching up, over and around obstacles. The AS-42CJ features a 550-pound load capacity and a 5.8 x 2.4 x 3.6 foot platform. Its crawler track system comes equipped with grey non-marking pads, allowing for safe operation on finished indoor floors while maintaining low ground pressure on outdoor terrain. The machine offers versatile mobility with three-speed travel capability ranging from 0.56 to 1.7 miles/hour. The platform provides 180-degree rotation for enhanced positioning flexibility. Powered by an efficient Kubota D1305 engine and equipped with a 26.4-galloon fuel tank, the AS-15MCJ ensures extended operation times on the job site. Comprehensive safety features include an emergency stop system, foot switch with enabling mechanism, auxiliary lowering control and overload sensing system. Additional standard equipment includes a battery isolator switch and LED lighting system for improved visibility. The machine’s compact transport dimensions of 27.13 x 7.38 x 7.58 feet and weighing 19,840 pounds make it easily transportable between job sites while maintaining a 5° tilt tolerance during operation.
