O-ring gasket TUQ75K

silicone

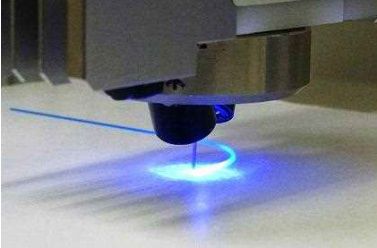

Functions Alternative to traditional gaskets made of rubber or foamed material Water-proofing, Dust-proofing, Cushioning, Vibration dampening, Stress relief (gap correction, backlash fixing) Noise reduction（chatter noise, collision noise） Features 1) High designing flexibility The GEL is cured with ultraviolet (UV) light while robotically being traced onto a part in accordance with the data electrically designed using the computer aided (CAD) system. This eliminates the conventional die-molding process and provides high flexibility in designing the gasket pattern. 2) Reduction of cost and lead time The CIP (Cured-In-Place) Gasket process reduces the cost for the die preparation and the loss generated by the manual fitting of parts. This enables one to reduce the cost as well as the lead time. 3) Ease of down-sizing The UV-curable gel can be easily processed into gaskets for various parts smaller and thinner compared with the rubber-based and form-based gasket processing. This facilitates to down- size the final products. 4) Softness and low hardness Compared with the manually fitted gasket, softer gasket with ultra-low hardness can be easily fabricated in the CIP process using the UV-curable gel. 5) Short curing time UV cure αGEL reaches its final hardness in 100-300mW/cm² x 10-30 seconds in order to reduce production time.
