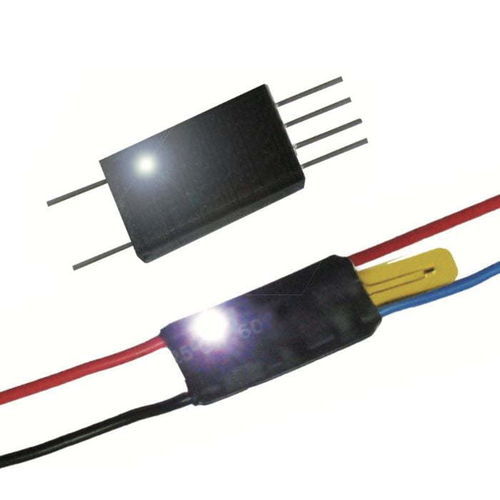

LED temperature control module MT series

programmableindustrialcompact

Overview
The MT series micro temperature and time controller is a patented, compact module designed to add heating control to space-constrained products without PCB redesign. It supports customizable ON/OFF temperature limits and timer settings, with more than 10,000 standard configurations available. Compatible with ultra-thin flexible heaters and low-inrush PTC elements for industrial applications.

Features

• Compact form factor: 20 x 10 x 3 mm — fits confined assemblies
• Simple integration: no extra controller or major circuit changes required
• Flexible power: DC 3.7–24V (USB or battery compatible)
• Fast sampling and control: sampling time <100 ms; temperature accuracy ±2℃
• Multiple control modes: constant temperature, limit (ON/OFF), timer, cyclic timer
• Highly configurable: ON/OFF temperature limits, timer 1–1440 minutes, cycle 1–99 cycles; >10,000 standard variants
• Safety guidance: for external adapters recommend 100–220 µF capacitor to reduce voltage surges

Model and function differences
Model | Function | Temperature Range (℃) | Timer Range (min) | Cycle Timer
MT | Constant temperature control | -30℃ ~ 120℃ (customizable to 180℃) | – | –
MTT | Constant temperature + Timer | -30℃ ~ 120℃ (customizable to 180℃) | 1 ~ 1440 (24HR) | –
MTR | Temperature limit control | -30℃ ~ 120℃ (customizable to 180℃) | – | –
MTTR | Temperature limit + Timer | -30℃ ~ 120℃ (customizable to 180℃) | 1 ~ 1440 (24HR) | –
MTC | Constant temperature + Cycle timer | -30℃ ~ 120℃ (customizable to 180℃) | – | 1 ~ 99 (continuous cycle customizable)
MTTC | Constant temperature + Cycle timer + Timer | -30℃ ~ 120℃ (customizable to 180℃) | 1 ~ 1440 (24HR) | 1 ~ 99 (continuous cycle customizable)

MT Series — Standard specifications

• Dimensions (L×W×T): 20 x 10 x 3 mm
• Input voltage: DC 3.7V–24V
• Power frequency: 50/60 Hz
• Max current output: ≤4A (10A short burst ≤30s)
• Sampling time: <100 ms
• Temperature accuracy: ±2℃
• Humidity: 0–80% RH (no condensation)
• Control range: -30℃ to 120℃ (customizable to 180℃)
• Operating ambient: -40℃ to 80℃
• Display/settings: LED
• NTC sensor options: 0 mm (surface), 25 mm (standard), 50 mm (bulk order)

MT Model — Constant temperature examples
Sample model codes show fixed hold temperatures (excerpt):
MT-30XXXX = -30℃
MT-10XXXX = -10℃
MT000XXXX = 0℃
MT010XXXX = 10℃
MT025XXXX = 25℃
MT050XXXX = 50℃
MT080XXXX = 80℃
MT120XXXX = 120℃
MT180XXXX = 180℃ (special)

Notes on models

• Highlighted/standard models have shorter lead times; special high-temperature models available to 180℃.
• Typical max current varies by type (e.g., ~2.5A Type A; 4A Type D). Other specs available on request.
• Custom granular settings: 1℃ steps and 1-minute timer increments up to 24 hours or continuous cycles.

Applications

• Industrial products requiring integrated temperature + time control in minimal space
• Examples: medical heating modules, wearable heaters, optical/camera de-icing, environmental control with low-inrush PTC heaters, integration with ultra-thin heating films

Technical summary

• Product family: MT / MTT / MTR / MTTR / MTC / MTTC
• Control modes: constant temp, limit, timer, cyclic, combined
• Timer range: continuous or 1–1440 minutes; cycle 1–99
• Power: DC 3.7–24V; recommended capacitor 100–220 µF for external adapters
