Digital temperature controller DTC series

LEDheatingcompact

Product Overview The 4-Phase Digital Temperature Time Controller uses PWM to regulate input power with four power stages (25%, 50%, 75%, 100%). Output temperature depends on the connected heater (power density). Compact and lightweight, suited for heater blankets, pet warmers, heater mattresses and similar applications. KLC's digital temperature-time controller combines temperature and timer control functions.

Features

• LED display for setting and indication
• Automatic memory of previous settings
• Four-phase power control: 25%, 50%, 75%, 100%
• Supports AC (100–120V / 200–240V) and DC (12–24V) inputs
• Compatible with KLC heater product ranges
• Typical applications: pet warmers, heater blankets, heater mattresses

Models DTC-1024A — AC100~120V; DTC-2048A — AC200~240V; DTC-02004A — DC12~28V

Images (referenced on product page)

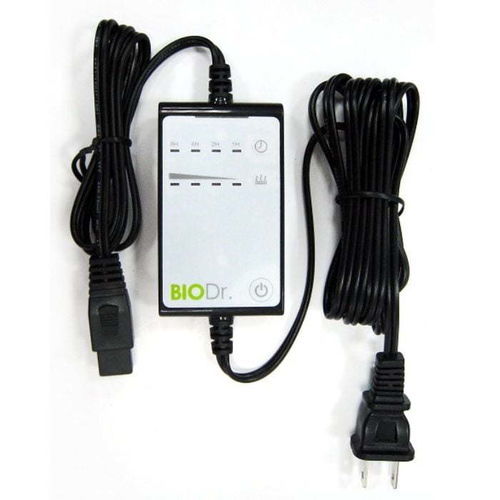

• 4-Phase-Temperature-Time-Control-Device.jpg (main product image)
• 4-Stage-Temp-Controller-lightOn.jpg
• 4-Stage-Temp-Controller-lightOn-large.jpg

Basic specifications

• Dimensions: 50 x 86 x 14 mm
• Housing material: POM
• Input voltage: AC100~120V / AC200~240V / DC12~24V
• Frequency: 50/60Hz
• Max. current: ≤2A
• Operating ambient temperature: -20℃ to 55℃ (no condensation/icing)
• Operating ambient humidity: 0–80% RH (no condensation/icing)
• Temperature control range: 0–150℃ (32℉–302℉)
• Display/interface: LED display
• Power control: Phase 1–4 (25%, 50%, 75%, 100%)
• Time control: Phase 1–4 (1, 2, 4, 8 hours)
