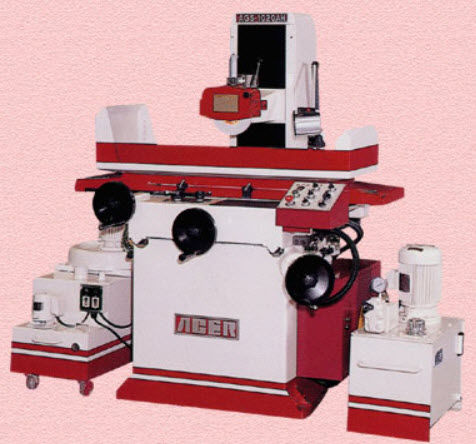

Surface grinding machine AGS-1020AH for metal sheetsCNCautomatic
Add to favorites
Compare this product
Characteristics
- Type
- surface
- Applications
- for metal sheets
- Control type
- CNC, automatic
- Number of axes
- 2-axis
- Spindle speed
3,500 rpm
(21,991 rad.min-1)- Power
2 ch
(2 hp)- Distance between centers
20 in
Description
2 HP V-3 graded spindle motor.
10" x 20" grinding capacity.
Double nut design on crossfeed leadscrew for continuous backlash adjustment.
2 axes automatic movement.
Safety 24 volt circuit control.
Auto lube system.
22" wide double V crossfeed ways.
2,970 lbs of full Meehanite casting.
19 3/4" from table top to the center of spindle.
Package with parallel dresser, dust suction & coolant system, halogen light, and permanent magnetic chuck.
