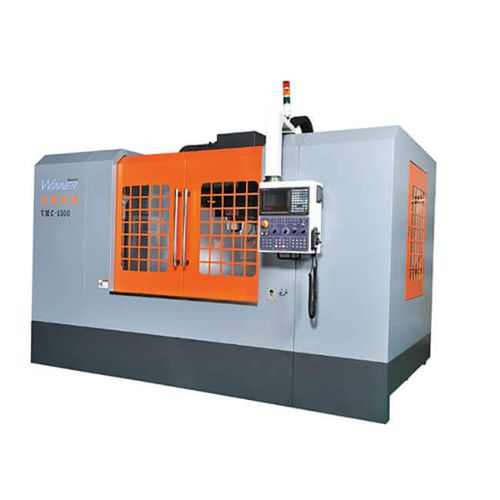

3-axis CNC machining center VMC-E1800-E1900

verticalBT 5024 tools

X/Y axes adopt heavy duty linear ways for E type machine but Z axis boxway which has been precisely ground by handcraft ; Not only to guarantee the smoothly movement on X-Y axes, but also not losing any rigidity consideration of while Z-axis machining and moving of its work head. A central rod guides the counterweight. It ensures no vibration effect for Z axis high speed feed-rate and cutting accuracy. High rigid (ball-screw) provides reliable transmission for high speed processing. Superior rigidity structural offers to achieving precision and lasting performance in heavy cutting applications. Table Table size - mm - 1970x1000 - 2050x1000 T slots - mm - 18x7x120 - 18x7x150 Max. table loading - kg - 3000 - 3000 Travel X/Y/Z - axis travel - mm - 1800/900/800 - 1900/900/800 Spindle nose to table surface - mm - 100~900 - 100~900 Spindle Spindle transmission - - Belt type - Belt type Spindle taper - - BT-50 - BT-50 Spindle speed - rpm - 6000 - 6000 Spindle motor - kw - 22/26 - 22/26 Feed X-Y-Z MOTOR(Fanuc) - kw - 7/7/7 - 7/7/7 X-Y-Z motor(Mitsubishi) - kw - 4.5/4.5/4.5 - 4.5/4.5/4.5 X-Y-Z Rapid travel - m/min - 15/15/15 - 15/15/15 X-Y-Z Cutting feed rate - m/min - 8 - 8 ATC System ATC type. - - Arm type - Arm type Magazine capacity - pcs - 24T - 24T Max.tool diameter - Ø(mm) - Ø125 - Ø125 Max.tool length - mm - 300 - 300 Max.tool weight - kgs - 15 - 15 Rail Type Rail Type - - - E Series:Z-boxway;X-Y linearways/Y-axis 4 guideways Dimensions&others Power consumption - KVA - 30 - 30 Air pressure required - kfg/CM² - 6-8 - 6-8 Floor occupation - cm - 580x510x370 - 610x520x370 Machine weights - kg - 20000 - 20000
