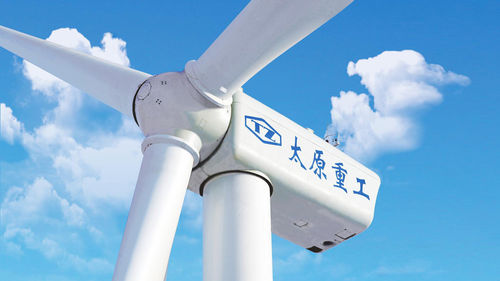

Offshore wind turbine TZ2500

variable-speed

TZ2500 series wind turbine is a three-blade, upwind direction, horizontal axis parallel wind turbines, which has the main features of variable speed constant frequency, independent electric pitch, automatic yaw, suitable for high temperature, low temperature, inland, coastal, intertidal zone, offshore, high altitude, low wind speed and other different wind resources, and can be matched according to the wind electric field wind resources with the different wind wheel diameters and hub heights. Main parameters: Rated power: 2500kW Wind wheel diameter: 122m ~ 133m Hub height: 90m Application Doubly fed TZ2500 wind turbinesissuitable for high temperature, low temperature, inland, coastal, intertidal zone, offshore, high altitude, low wind speed and other areas with different wind resources, and can be matched according to the wind resources of wind farms with different wheel diameter and hub height. Features 01.TZ2500 series wind turbines the superior performance of the pitch system, electric independent pitch, fast response, set to be accurate, no hidden danger of oil leakage, high reliability, less maintenance. 02.TZ2500 series wind turbines has excellent grid connection function and excellent low voltage ride through capability. 03.TZ2500 series wind turbines can control the current in the rotor loop of the generator, accurately control the reactive power, and ensure the smooth interconnection of the generator. 04.TZ2500 series wind turbines has advanced control strategy, which can effectively improve wind energy utilization and power generation by 2%-3%.
