Handheld enclosure LCT seriesrectangularABSABS plastic
Add to favorites
Compare this product
Characteristics
- Construction
- handheld
- Configuration
- rectangular
- Material
- ABS, ABS plastic, silicone, plastic
- Application
- for measuring devices, medical, for wireless access point, test
- Protection level
- impact-resistant, shock resistant, shockproof
- Other characteristics
- compact
- Width
Max.: 105 mm
(4.1 in)Min.: 76 mm
(3 in)- Height
Max.: 48 mm
(1.9 in)Min.: 28 mm
(1.1 in)- Depth
Max.: 173.9 mm
(6.85 in)Min.: 121.9 mm
(4.8 in)
Description

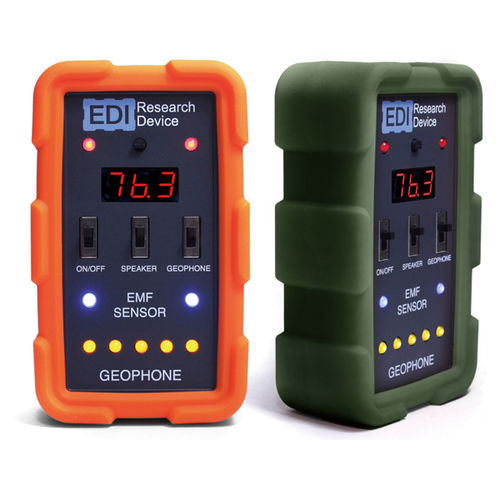

Plastic case with shockproof silicone cover. Protects the device from various impact.
Various battery layout options available.
Positive (+) / negative (-) pole marks are incused on the inside of the battery compartments.
Suitable for measuring instruments, test devices, wireless communication devices, medical devices and more.
Specifications
See TAKACHI website for accessories and optional parts.
Various battery layout options available.
Positive (+) / negative (-) pole marks are incused on the inside of the battery compartments.
Suitable for measuring instruments, test devices, wireless communication devices, medical devices and more.
Specifications
- Material : ABS (UL94V-0)
- Protection class : IP40
- Operating temperature : -10°C ~ +60°C
- 8 sizes available.
- Available in 8 color combinations.
See TAKACHI website for accessories and optional parts.
